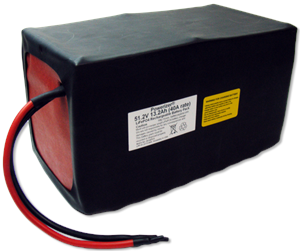

LiFePO4 Battery: 51.2V 13.2Ah (675Wh, 40A rate)

Your Price: $700.00
In Stock

Product ID # 4986
Part Number:
LFP-51.2V13.6Ah

Lead Time: 5 Business Days


Quantity Discounts

QuantityAmount
5 to 20$679.00
21 to 50$665.00
51 to 100$651.00
101 or more$630.00

Features

*Important Shipping Regulation        This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
  • LFP Battery: 51.2V 13.2Ah (675Wh, 60A rate ) for E-Bike
  • Build by LFP 26650 3300mAh cells, 16S4P
Voltage        51.2 V (working)   58.4 V (peak)  40V ( cut-off)
Capacity        13.2Ah (675.84 Wh)
Cycle life        <1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Protection
  • One PCM (60A limited) installed with the  battery pack and protects the battery from
    • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
Prewired
  • 8" long 8 AWG  open end wire
    • Red = Positive
    • Black = Negative
Charging rate       10 A Max
Max. Discharging Rate       40A continuous
Dimensions(LxWxH)       265mm (10.43") X 153mm (6.02") X 140mm (5.51")
Weight       15LBs 4.8oz (6940g)

Applications

  • Replace 48V NiMH and Lead acid battery with much longer cycle life
  • Cycle life is 4 times more than NiMH pack, so it is much economic

Warnings

Please click Knowledge on LiFePO4 batteryto learn more detail
