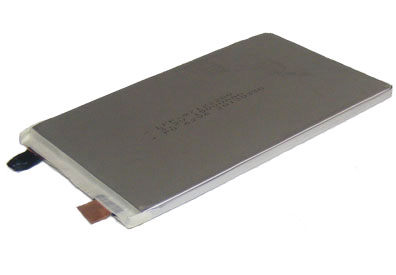

LFP Polymer Cell: 3.2V 15Ah (87122200-2C, 48Wh, 30A rate) - UN38.3 Passed
|
|
In Stock
Product ID # 7206
Part Number: LFP-87122200-2C
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $38.75 |
| 21 to 50 | $37.95 |
| 51 to 100 | $37.15 |
| 101 or more | $35.95 |
|
|
Features
| Capacity |
- Nominal: 15000mAh (15Ah)
- Average: 48 Wh (Capacity will reduce with cycle life)
- Energy Density: 126.32Wh/Kg
|
| Cycle life |
> 2000 times @ 0.2C rate, IEC standard |
| Charging rate |
15.0 A Max. (1.0C rate) |
| Discharging Rate |
30A Max. (2.0C rate) |
| Dimension(LxWxH) with tolerance +/- 0.5 mm |
201.5mm(7.9") x 123mm(4.8") x 8.7mm(0.3") |
| Weight |
13.4 Oz (382grams) |
Please download the Specification here
Warnings
- Don't use NiMH or Li-ion smart charger charge LiFePO4 cell/pack.LiFePO4 battery must be cut-off at 3.8V/cell when charging
- Wrong type of charger used will cause cell to explode. Batteryspace.com will not be responsible for damageYou must limit discharging rate below Max rate
- The end user must have the technical knowledge necessary to charge and discharge Lithium batteries before making Lithium Battery Packs
- You must use a protection IC ( PCB) to keep the battery and its packfrom over charging and over discharging.
- Please read more safety warning about Li-ion battery
- Batteryspace.com is NOT liable for any mis-use due to any other brand of PCB applied
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
|
Related Products
- For battery packs build by LFP-87122200-2C, please check here
- If you build battery pack yourself, you MUST install PCB/BMS for protection with the following feature:You also need Smart LiFePO4 Battery charger to recharge this battery.
- 3.9V/cell over-charge protection
- 2.3V/cell over-discharge protection
- Max current over-drain protection
- Short circuit protection.
- For build 6.4V-19.2V pack without PCB/PCM installed, Must use balance charger below. Batteryspace.com won't liable for any miss-use due to any other brand of PCB applied
|
|
