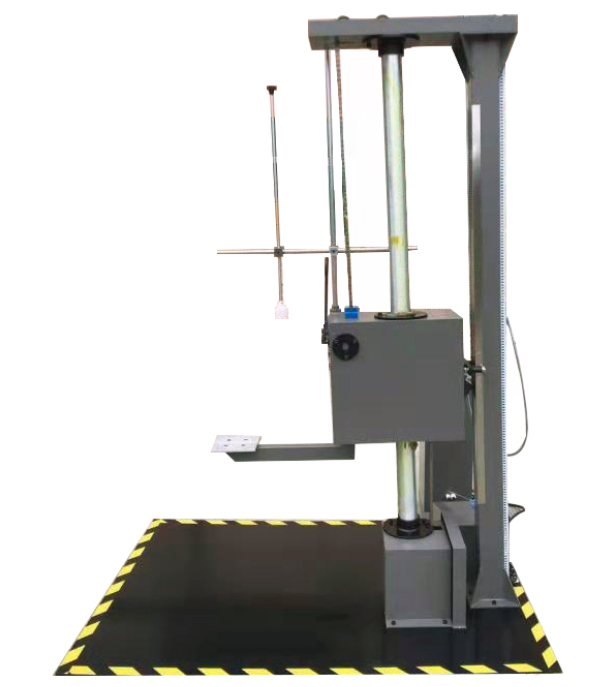

Drop Tester for Lithium Battery Package
Your Price: RFQ
Please email for lead time

Product ID # 990
Part Number: BS-111

Add to a new shopping list
BS-111 is an NRTL ready drop tester performing the 1.2 meter drop test for the Lithium ion batteries package according to UN3480 / UN3090 and IATA Lithium ion batteries package Shipping Guidelines.

SPECIFICATIONS

Power
  • 110VAC, single phase, 50/60Hz
  • Power consumption: 1.85KW
Testing Parameters
  • Drop height: 300 - 1500mm adjustable, ±10mm, motor control
  • Impact orientations: face, vertice, edge
  • Test sample weight: 80kg max.
  • Test sample dimensions: 800 x 800 x 1000mm max.
  • Base area: 1700x1200x10mm (L x W x T), cast iron
Product Dimensions and Weight
  • Dimensions: 1700 x 1200 x 2300 mm
  • Weight: 300kg
Warranty One-year limited manufacturer's warranty with lifetime support; extended warranty available upon request at additional cost.
