NiMH Rechargeable Battery: 12V 20Ah (240 Wh, 4x5S/S, MH-D50)

Your Price: $285.95
In Stock

Product ID # 6146
Part Number:
PR-CU-R210

Customize pack need 5 business days to build !


Quantity Discounts

QuantityAmount
25 to 50$271.65
51 to 100$257.35
101 to 500$243.05
Battery

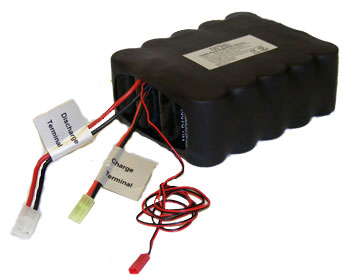

  • 12V 20Ah NiMH Battery Pack consists of  20 pcs of 1.2V "D" 10Ah NiMh batteries in 10S2P (4 rows of 5 cells) configuration
  • Wrapped by heavy duty heat shrink tube
Voltage      12V ( working )    14.5V ( peak)
Capacity      20Ah or 240 Wh
Charging Rate      Standard 1.8 A     Max. 5 A  ( for each 12V 10Ah module)
Discharging Rate
  • Standard rate: 10Amp  ( Recommended and warrantied)
  • Highest rate for continuous running:  50Amp
  • Max. Rate for short time: 100Amp ( Not recommend as working rate )
Protection
Terminal
Dimension (LxWxH)      172mm(6.7") x 136mm(5.4") x 68mm(2.7")
 Battery Net Weight      7.0 lbs 5.2 Oz (3320 grams)
Related Products
Cautions
  • Please don't discharging the battery pack below 10V  ( 1.0 V / cell)  Deep discharging may damage NiMH battery pack.
  • Charging battery immediately every time it is discharged. Never storage the battery pack at below 10V.
  • Please don't use charger terminal to discharge battery
Notes Things to know about Nimh Batteries
