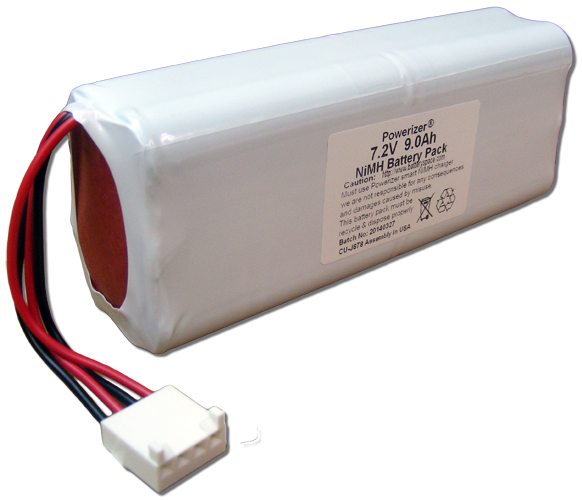

Custom NiMH Battery Pack: [7.2V 4.5Ah] x 2, shrink wrap into one pack (MH-4/3AF4500)

Your Price: From $62.95 to $64.95
Customize pack need 5 business days to build !

Product Options

Options:


Battery
Voltage      Voltage: 7.2V (working)
Capacity      4500mAh for each battery pack
Terminal

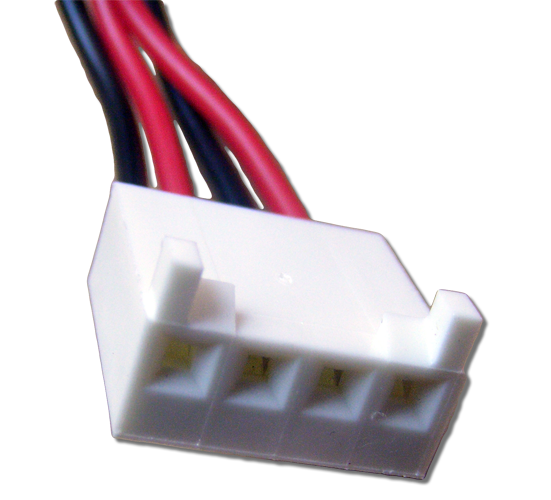

  • CU-J878: Charging /Discharging Terminals: 3.0" 18AWG wire with Molex 09-50-8043 connector
    • Pin 1 = Black, Pin 2 = Red, Pin 3 = Black, Pin 4 = Red
      • Pin 1 and Pin 2 = pack #1
      • Pin 3 and Pin 4 = Pack #2
  • CU-J878-V1: 3" 18AWG Charging /Discharging wires for each pack
    • Label wires with Pack#1 and Pack#2 separately
Max. Charging Current       0.5C (2.2A)
Max. Discharging Current       1C (4.5A)
Dimensions (LxWxH)       140mm x 55 mm x 38 mm (5.5" x 2.2" x 1.5")
Weight       5.2 oz(145 grams)
Related Products
Warning
  • Always charge battery with attention.  Battery pack shall be placed on a fire-proof place to avoid any accident
  • Please check battery polarity before plug battery into light. Never make wrong polarity connection.
  • For safety warning please see the link here
Notes Things to know about Nimh Batteries
