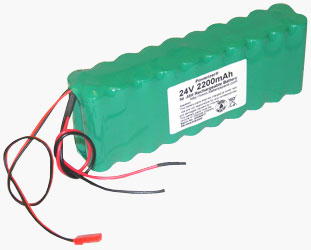

NiMH Rechargeable Battery: 24V 2200mAh (20xMH-AA2200B) with Thermistor
Your Price: $70.00
Lead Time: 5 Business Days

Product Options

Configuration:
Battery
  • Custom 24V 2200mAh NiMH Battery Pack
Configuration (Optional)
  • Option1: 4x5  Configuration
  • Option2: 2x10  Configuration
Voltage     24V ( working )    ( 29V at peak)
Capacity     2200mAh  ( 52.8 wh)
Charging current     1.5 A standard
Discharging rate     2.2A ( standard )    3.5A (Impluse rate < 5 min)
Protection
Wire
  • 7.0" 18 AWG open wire for charge and discharge terminal
Dimension (LxWxH)
  • 73mm (2.9") x 59mm (2.3") x 51mm (2.0")  ---- 4 x 5  Configuration
  • 142mm (5.64") x 28.8mm (1.13")  x 51mm (2.0") ---  2 x 10 Configuration
Weight      550g (1.0lb 3.4Oz)
