CH-USB3000 Micro Battery Charger with USB plug for NiMH AAA, AA Batteries

Your Price: $11.50
In Stock

Product ID # 5357
Part Number:

Finally, you are able to charge AA/AAA NiMH rechargeable cell via PC or Notebook

  • Battery Charger with USB female plug is designed for charge AA/AAA NiMH batteries via laptop/PC
  • Perfect for power up digital devices such as Mp3/Mp4/Digital Cameras/Portable Game Devices/Optical Mouse or other high drain electronics via USB female plug by 2 x AA/AAA NiMH rechargeable cells
  • Automatic charging current selection of AA & AAA batteries
  • Input: 5V 0.5A Max,switch position = "IN"
  • Output: 2.4V 180mA for charging AA/AAA
  • Charging Time for NiMH AA rechargeable cell (180mA charging current):
    • 2100 mAh  (12 hrs)
    • 2300 mAh  (13 hrs)
    • 2500 mAh  (14 hrs)
  •  Charging Time for NiMH AAA rechargeable cell (180mA charging current):
    • 800mAh (5 hrs)
    • 1000mAh (6.0 hrs)
  • Unplug and then re-plug the charger each time when you recharge the empty batteries. Unplugging the charger is needed because it will reset the timer.
  • CE Listed
  •  3 Flexible size for Storage, charge "AA/ AAA" cell
    • Dimension for storage (LxWxH): 66mm(2.6") x 38mm(1.5") x 20mm(0.8")
    • Dimension for AAA (LxWxH): 85mm(3.3") x 38mm(1.5") x 20mm(0.8")
      • Pull out the compartment slightly to fit for AAA position
    • Dimension for AAA (LxWxH): 92mm(3.6") x 38mm(1.5") x 20mm(0.8")
      • Pull out the compartment further until hearing the "click" sound to suit for AA position
  • Weight without battery: 20 grams (0.8Oz)
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings

How to convert into a two pin universal female plug with excluded AAA batteries
 How to convert into a two pin universal female plug with excluded AA batteries

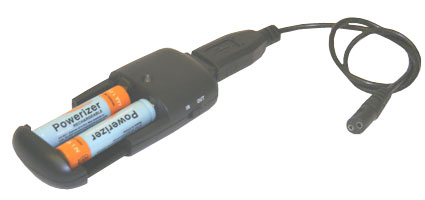

Battery charger with USB female plug and "IN/OUT" switch
How to convert into USB male plug with Included Connector/Adapter: From Male USB plug to two pin universal female plug & USB male plug tip
