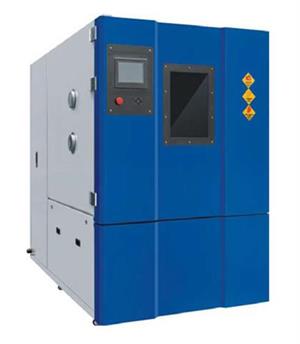

1000L Programmable Fast Thermal Test Chamber (-70ºC to +150 ºC, UN38.3.4.2)


Your Price: RFQ
Please email for lead time

Product ID # 2160
Part Number:
BS-098

BS-098 is a 1,000 liters programmable therm test chamber, capable of studying the performance of rechargeable battery at rapidly changing temperature in the range from -70ºC to 150ºC. The chamber contains a built-in air blower that enables to achieve a uniform temperature field. The test temperature is monitored by a built-in thermocouple and could be precisely controlled by the integrated PLC system.

The thermal testing system is built based on the thermal test requirement UN 38.3.4.2 of Lithium-ion battery testing requirements of UN manual of tests and criteria. An observation window is mounted on the front panel to monitor the real-time status of recharge batteries. The draining system could easily collect unexpected liquids.

Power
  • Voltage: AC 380V, 3 Phases 50 Hz
  • Current: 50 A
  • Power: 12 kW
Test Chamber Features
  • SS304 stainless steel chamber with of foam polyurethane and fiberglass as the thermal insulator.
  • Chamber dimensions: L 1000 mm x W 1000 mm x H 1000 mm (39x39x39 inches)
  • Obervation Window: L 270 mm x W 380 mm x T 80 mm, (10.6 x 15 x 3 inches) Four layers vacuum sealed.
  • Capacity: 1000 Liters.
  • Vent Port: 2" vent ports on the back for releasing pressure or smoke in case.
Control Panel
  • 6" touch-screen control panel to set up the program, and display temperature profile.
  • 15 PTM x 1500 STEP programmable, and each program can be repeated up to 999 times.
Cooling & Heating System
  • High-quality refrigeration compressor (1.5HP)
  • Refrigerant R404A, environment-friendly
  • Stainless heater tube
  • Built-in beep alarm for overheated and over-current
  • Working Temperature: Programmable from -70ºC - +150ºC
  • Temperature accuracy: ± 2ºC
  • Thermal couple: PT 100 2.0 diameter x 200 mm length
  • Maximum heating rate: 5ºC
  • Maximum cooling rate: 5ºC
Temperature Control
  • PID
Machine Dimensions & Weight
  • Chamber size: 1000 mm W x 1000 mm H x 1000 mm D (39x39x39 inches)
  • Dimension: 1200 mm W x 1900 mm H x 1800 mm D (47x75x71 inches)
  • Net weight: 450 kg (993LB)
Warranty
  • One-year limited manufacturer's warranty with lifetime support; extended warranty available upon request at additional cost.
Calibration
  • You may order NIST certified temerature monitor to calibrate the temperature of inside chamber at extra cost
  • Please order here
Testing Criteria UN38.3 Li-Ion Battery Transportation Safety Testing
Certificate If you need TUV, UL or CSA certificate for the equipment, there will be extra cost
