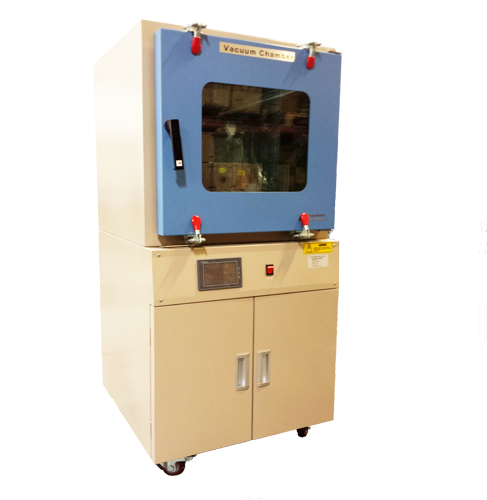

53L Vacuum Chamber (16x13x14" ) with Touch Control Panel for Battery Altitude Simulation Test (UN38.3.4.1)

Your Price: RFQ
Please email for lead time

Product ID # 7072
Part Number:
BS-001



BS-001 has a 53 L capacity larger vacuum chamber with built in vacuum pump and control system designed for Battery Altitude Simulation Test based on UN38.3 standard  (38.3.4.1)

Also, it can be used as vacuum storage chamber with automatic control of vacuum pressure and no vacuum leaking.

Specifications

Power 110V/220VAC, 50/60Hz, upon request
Chamber
  • Heavy duty and explosion-proof stainless steel structure
  • Inside dimensions:
    • Dimensions: 415 mm x 345 mm x 370 mm (16.3 x 13.5 x 14.5")
    • Capacity: 53 liter
  • Chamber Outside Dimensions: 710 x 560 x 550 mm ( 28 x 22 x 22" )
  • Total size:   640X6900X1280mm (24.5 X 28 X 50.5")
  • Working temperature: Room Temp. without heating
  • Vacuum Pressure:< 0.2Kpa (7.5 Torr)  by built in Mechanical pump
Pressure Control
  • Built in Vacuum pressure sensor to turn off vacuum pump at 11.6 KPa
  • 6" Touch-screen PLC panel to control & display pressure and running time automatically.
  • Optional´╝Ü  (at extra cost)
    • Can add pressure setting programmable function upto 9 segments according to request.
    • Can add  heating programmable  function upto temperture of 250°C
Vacuum pump
Calibration
  • You order  NIST traceable digitable gauge to calibrate vacuum chamber pressure at extra cost
  • You may order here
Warranty One year limited warranty with lifetime support
Shipping Weight 435 lbs, 48"x40"x63"
Certificate
  • CE Certified
  • All electric components ( >24V) are UL / MET / CSA certified
  • The furnace is ready to pass TUV(UL61010) or CSA certification at extra cost. (please click marks below to learn details)
  •
Testing Criteria
