Ultra Thin Lithium Battery, 3.0V 25mAh for RFID, UTB-482340 (0.008)

Ultra thin Primary Lithium battery is designed for RFID (Radio Frequency Identification) and powered card. Please click here to learn more ---   What is ultra thin Lithium primary battery.

Technical Specifications

• Chemistry: Cathode-Manganese dioxide  and Anode Metallic lithium
• Nominal Voltage: 3.0 V
• Nominal Capacity (C/40@23^oC): 25 mAh (Discharge to 2.0V )
• Max. cont. Discharge (23^oC): C/2
• Operating Temperature: -20^oC (-4F)~60 ^oC (140F)
• Storage Temperature: -20^oC (-4F)~60 ^oC (140F)
• Weight Approx:  0.45 g

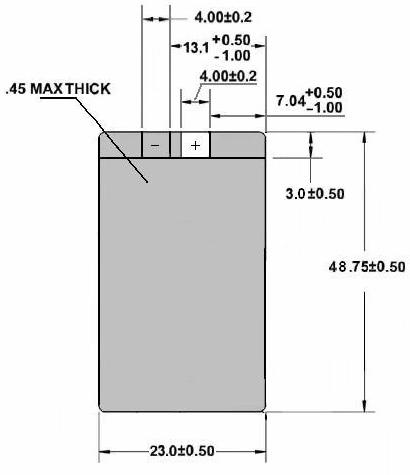

• Dimension (LxWxH): 48.7  mm x 23.0 mm x 0.45 mm
  • H = thickness
• Anode tap/ Cathode tap Copper / Aluminum
• Self Discharge Rate Under 10 % for 3 years @ 30 ^oC
• Jacket Flexible Aluminum Foil Packaging
• Approved product by UL & Rohs
•  Please click here to download specification

Note: must use spot welder to make connection!
