Smart Charger (3.0A) for 14.8V Li-ion/Polymer Rechargeable Battery - CE Listed

Your Price: From $36.95 to $46.95

Product Options

Terminal Connector:


  • Intelligent charger designed for any 14.8V (4 cells)Li-Ion Battery packs including Polymer Li-Ion and Cylindrical Li-Ion
  • Built in cooling fan to ensure charger long service life
  • Built in IC to cut off power automatically when battery is fully charge.
Input Voltage
  • 110- 240VAC, 50/60 Hz
    • Must connect AC plug to the wall before connecting to battery pack
Output Voltage       16.8VDC
Charging current       3.0A
Battery Capacity To Use       >= 3000 mAh
Protection       Over voltage / Output Reversed

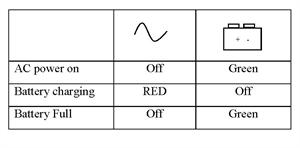

LED Indicator
  • Red LED = charging
  • Green LED = fully charged
Size (LxWxH)       155mm (6.1") x 83mm (3.3") x 48mm (1.9")
Weight       817g (1.8lbs)
Certification       CE  Listed

Connector Options

  • CU-N144: Housing - Molex 03-09-2042, Female Pin: Molex 02-09-2103
    • Pin 1 = Positive and Pin 2 = Negative

Related Products

Product Reviews

(4 Ratings, 4 Reviews) Average Rating:
Camera Batteries
Richard Martz (BUFORD, GA) 1/11/2014 5:26 AM
We use this charger to charge camea batteries. We modify the output to an industry standard connector. It has worked extremely well for our purposes. The charging time on our 14.8 volt / 5AH LIFEPO battery is only about 2.5 hours. The procedure for connecting the battery MUST be strictly observed however. DO Not connect the battery before connecting the charger to your AC power source. Be sure to connect the charger first. You will get a green light on the charger. Then connect the battery.
Great selection of batteries
Christopher Roy (Brown Summit, NC) 9/4/2013 4:47 PM
Great selection of batteries. Also like how you have pictures of your facilities. Looks very professional. Keep up the good work! Christopher
used a 14.8V/10Ah rechargeable Li-ion battery from them
pallayil (Singapore, Singapore 119223) 6/29/2012 3:32 PM
Last year when I was looking for a portable power supply solution, I came across the supplier called BatterySpace. A search on the web directed me to their web page and I was lucky to find what I needed. I have used a 14.8V/10Ah rechargeable Li-ion battery from them and it worked well for my application. I needed a very compact solution and at the same time enough AH to run my electronics (a DSP based data acquisition system) continuously for 5 hours. As the electronics was housed in an Autonomous Underwater Vehicle, which has a mission time of about 5 hrs, I had to ensure that there is enough 'fuel' to power up my system until the mission is completed. I am now planning to use a couple of them for a similar application. I found these battery power clean and right for both my analog and digital electronics.
satisfied with the purchase process.
vinod-211 (BEAVERTON, OR) 5/30/2012 1:51 PM
"satisfied with the purchase process. "
