Smart Charger (6.0A) for 25.9V Li-ion / 25.6V LiFePO4 Battery Packs

Your Price: From $82.00 to $98.95

Product Options

Connector Options:


Features

Feature
  • Intelligent charger designed for 25.6 V ( 8 cells) LiFePO4 battery pack with capacity ≥ 6 Ah
  • Intelligent charger designed for 25.9 V ( 7 cells) Lithium ion rechargeable battery pack with capacity ≥ 6 Ah
  • Built in cooling fan to ensure charger long service life
  • Built in IC to cut off power automatically when battery is fully charge
  • Update P/N from CU-N129 to CH-L2596SM - 10/18/2017
Input Voltage 100-240VAC, 50-60Hz, USA AC plug
Output Voltage 29.4±0.5VDC
Charging current 6±0.5A, Charging time = (1.5 x Ah rate of the pack) / 6.0A charge current
Shut off point current: 0.3A
Battery Capacity to use For battery's capacity ≥ 6 Ah
Protection
  • Short Circuit protection
  • Output reverse protection
LED Indicator
  • Red = Charging
  • Green = Fully Charged
Working Temperature <40°C
Size (LxWxH) 190mm(7.5")x92mm(3.6")x52mm(2.0")
Weight 2.2 lbs (1Kg)
Certification CE Listed

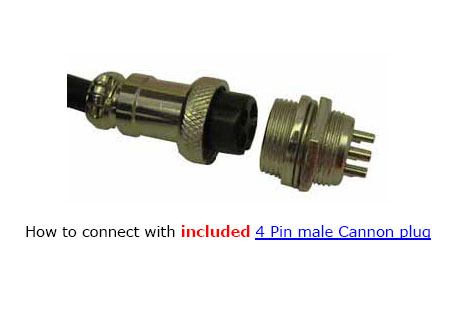

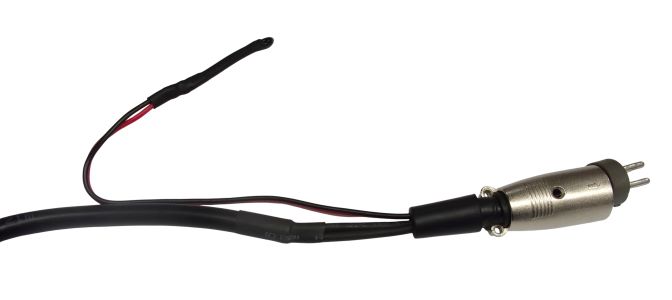

Connector Options

Specification

Warnings

  • Please connect battery with charger first, then plug into AC power.
  • After fully charged, disconnect battery from charger, then unplug from AC power.
  • Only charge battery pack with capacity ≥ 6Ah. Don't use the charger for lower capacity battery pack.
  • Only charge battery pack with voltage 25.6V (8 cell pack). Don't use the charger for Lower voltage battery pack which may cause battery to explode
  • Indoor use only
  • Don't remove the case to prevent from electric shock
  • Unplug the charge from AC outlet after use.
