Smart Charger (3.0A) for 14.8V Li-ion/Polymer Battery Pack

Your Price: From $36.95 to $46.95

Product Options

Output Terminal:


Features

Feature
  • Intelligent charger designed for any 14.8V (4 cells) Li-Ion Battery packs including Polymer Li-Ion and Cylindrical Li-Ion
  • Built in IC to cut off power automatically when battery is fully charge.
Input Voltage
  • 100- 240VAC, 50/60Hz, US Plug
Output Voltage       16.8V (CC/CV)
Charging current       Maximum: 3A
Battery Capacity       Suitable for battery pack with capacity ≥ 3000 mAh
Protection       Over voltage and Short Circuit protection
LED Indicator
  • Red LED = In charge
  • Green LED = No Battery / Battery Full
Operate Temperature       -10 to 40°C
Size (LxWxH)       Case Size: 120x60x37mm (4.72x2.4x1.5")
Gross Weight       1 LB
Certification       CE  Listed

Connector Options

  • CH-L1483SM: 5.5x2.1mm male connector
    • Included 1x 5.5x2.1 female connector to alligator Clip
  • CH-L1483SM-V3: Standard Female Tamiya Connector
    • Sqare: Positive, Round: Negative

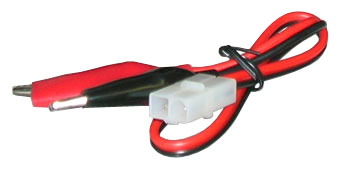

    • Included 1x connector adaptor, convert from Standard Male Tamiya plug to alligator Clip

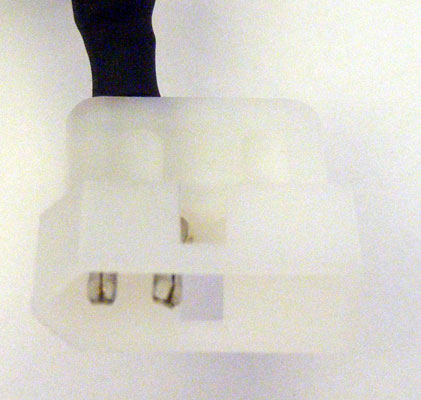

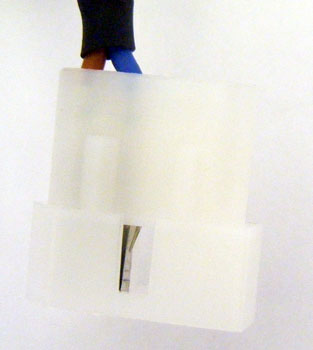

  • CU-L1483SM-V6: Housing - Molex 03-09-2042, Female Pin: Molex 02-09-2103
    • Pin 1 = Positive and Pin 2 = Negative
