Portable Power Kit: Li-Ion Battery (11.1V 12.8Ah -142 wh) + Power Inverter with 110VAC & 5V USB Output --- Power on the Go

Your Price: $249.95
In Stock

Product ID # 3308
Part Number:
LPB-11V12.8A-Carplug-Ch

lead time is 1 to 2 weeks


Quantity Discounts

QuantityAmount
5 to 20$242.45
21 to 50$237.45
51 to 100$232.45
101 or more$224.96

The State of Art Portable Li-Ion Battery Bank at Affordable Price. -- Now You can have Power  anywhere!

  • The battery bank combined with smart power inverter provides 110V AC output to plug in your AC operating device same as home wall plug or use the 5V DC USB socket to recharge or run most electronic devices, such as MP3, Video game player, PDA etc with super long time
  • 142 Wh super-hi-power means running Laptop up to 8 hours (pending on the current being draw by your device)
  • The car socket from battery pack can run most 12V DC devices
  • You can recharge the battery bank worldwide either in house or in the car

Battery Pack
 Voltage                                     Voltage: 11.1V (working)   12.6V ( peak)  7.5V ( cut-off)
 Capacity        12.8 Ah min. (142 wh)
Protection
  • 1x PCM (10A) installed with the battery pack and protects the battery from
    • Overcharge       ( >12.6V)
    • Over discharge  ( < 7.5 V)
    • Over drain ( >  10 Amp)
    • Short circuits
Prewired
  • 4' long Trail-Tech female plug for charge/discharge terminal
  • Included Trail-Tech Male plug, please click here to view.
    • It is used for connecting the light by yourself if the light connector won't match our Trail-Tech female plug battery.
  • Included1 x  connector adapter ( Convert from Trail-Tech male plug to Female Cigarette car)
    • For connecting battery to the smart power inverter with included connector adapter ( Convert from Male Cigarette plug to airplane plug)
  • If you need extra male car lighter plug,  please find one here
Max. Discharging Rate       10 Amp limited by PCM
Dimension (LxWxH)       194mm (7.64") x 79mm (3.11") x 59mm (2.2")
Weight       780 g  (1 .7 lb )
Smart Power Inverter
  • Included one smart power inverter
    • 120W continuous use, and 300W peak surge
    • Input:   10V -15Vdc  (Auto Low Battery Shutdown at 10V)
    • Output:  110V AC (wall plug) and 5V DC (USB)




Smart charger

  • Included one 11.1V (1.5A) Smart Li-Ion battery charger (Trail-Tech male plug)
    • Input:  100V - 240V AC worldwide use
    • The charging time is about 13 hours. It will cut-off power when battery fully charged
    • If you need recharge battery from car, you can insert Smart power inverter into the car lighter, then plug the smart charger into 110V AC socket of the inverter, then, plug the charger into battery pack (make sure your engine is running to avoid over drain car battery)
 Applications
  • Combined with smart power inverter with DC &AC sockets, the battery pack can run all devices at 110V AC, ( such as Laptop and portable TV)  and 5V USB  ( MP3, Video game and PDA) , see the picture below.

    Operation notes:
  •  Please always recharge battery bank before use.
  • Always plug power inverter into battery socket before operation
    • For running Laptop, plug the power inverter into the battery pack, then connect laptop's AC adapter into 110Vac socket of the inverter. You can run most laptops without connector problem.

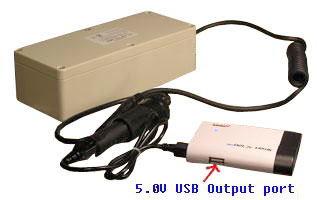

    • If your device use USB connector for power, you can connect your device to USB socket
  •  If your device need 12V input with car lighter plug, you can plug directly into car lighter socket of the battery bank.
  • Battery pack's running time is determined by device's wattage.  You can estimate the running time  ( hours ) with this formula:   (142Wh / wattage of your device)
 Warning
  • Li-Ion battery may be exploded if misused. We are not responsible for any damages or losses caused by misuse
  • Always charge battery with attention.  Battery pack need to be placed on a fire-proof place to avoid any accident
  • Please check battery polarity before plug battery into light.
  • For safety warning please see the link here

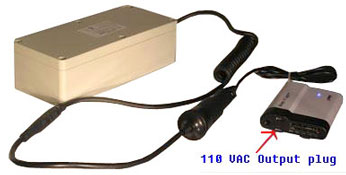

How to connect the pack to the included smart inverter  by connector adapter (Convert from Trail-Tech Female plug to Female Cigarette car) along with connector adapter (Convert from Male Cigarette plug to airplane plug)

Laptop powered by Li-Ion bank kit
