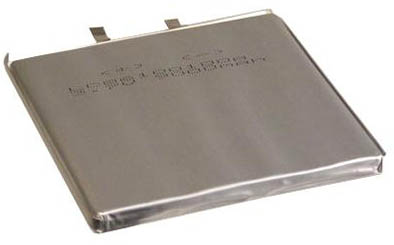

Polymer Li-Ion Cell: 3.7V 9000 mAh (809797-1C, 33.3Wh, 9A rate) - UL listed
|
In Stock
Part Number: PL-809797-1C
Product ID # 3389
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $29.05 |
| 21 to 50 | $28.45 |
| 51 to 100 | $27.85 |
| 101 to 500 | $26.96 |
|
| Chemistry
|
Power Polymer Li-Ion 3.7V 9000 mAh (PL-809797) cell, UL listed
|
| Capacity:
|
- Nominal: 9000mAh
-
Average: 33.3 Wh ( Capacity will reduce with cycle life , Battery labeled with Min. capacity at 300 cycles
-
Energy Density: 175.2wh/kg
|
| Cycle life:
|
> 500 times
|
| Charging rate
|
4.5A Max. (0.5C rate)
|
| Discharging Rate:
|
9A Max. (1C rate)
|
| Size:
|
8.0 (thick) x 97 (width) x 99 (length) mm
|
| Weight:
|
6.7Oz (190grams)
|
| Data Sheet
|
 Please download specification of Li-ion polymer 3.7v 9000 mAh (809797A).
|
| Tips:
|
- Please use our smart charger to charge your pack. (The voltage of the pack must match the voltage of the charger)
- Charging time = (1.5 x Ah of the pack)/ Amp charging current
- If you DIY by yourself, you MUST install Our PCB or your own PCB with the following feature:
- 4.2V/cell over-charge protection
- 2.5V/cell over-discharge protection
- Max current over-drain protection
- Short circuit protection.
- Batteryspace.com won't liable for any mis-use due to any other brand of PCB applied
- The polymer battery is excellent for Notebooks, DVD, Bike Lights, Camera and Flash-Light power banks
- Other battery module made by 3.7V 9000mAh cell can be found here
- Need UL listed Polymer Li-Ion cells? Please click here to order.
|
| Warning
|
- Li-Ion Batteries may explode if charged or discharged improperly.
- The end user must have the technical knowledge necessary to charge and discharge Li-Ion batteries before making Li-Ion Battery Packs
- You must use a protection IC ( PCB) to keep the battery and its pack from over charging and over discharging.
- Please read more safety warning about Li-ion battery (click to link)
|
|
