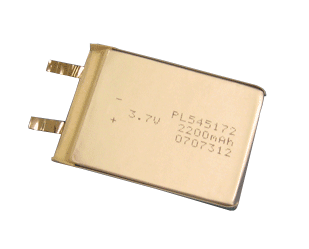

Polymer Li-Ion Cell: 3.7V 2200mAh (545172-2C, 8.14Wh, 4.4A rate) (0.66)

Your Price: $9.50
Call to Order, 200 pcs minimum

Product ID # 3809

Part Number:
PL-545172-2C



Quantity Discounts

QuantityAmount
5 to 20$9.21
21 to 50$9.02
51 to 100$8.84
101 or more$8.55
Chemistry    Polymer Li-Ion PL-545172
Capacity:
  • Nominal:   2200mAh  7.2Wh   ( Capacity will reduce with cycle life , Battery labeled with Min. capacity at 300 cycles ) Peak capacity: 2300mAh
Cycle life:   500 times
Charging rate   1.0A Max.  (1.0C rate)
Discharging Rate:      4.4A Max.  (2C rate)
Size with tolerance +/- 0.5 mm   5.4mm L x 51.5mm W x 72.6mm H
Weight:    43 grams 1.52oz
 Data Sheet    Please click here to download the specification.
 Tips:
  •  You may choose Our smart Li-Ion battery charger to recharge this battery depending on voltage of your pack
  • If you DIY by yourself, you MUST install Our PCB or your own PCB with the following feature:
    • 4.2V/cell over-charge protection
    • 2.5V/cell over-discharge protection
    • Max current over-drain protection
    • Short circuit protection.
  • Batteryspace.com won't liable for any mis-use due to any other brand of PCB applied
 Warning
  • Li-Ion Batteries may explode if charged or discharged improperly.
  • The end user must have the technical knowledge necessary to charge and discharge Li-Ion batteries before making Li-Ion Battery Packs
  • You must use a protection IC  ( PCB) to keep the battery and its pack from over charging and over discharging.
  • Please read more safety warning about Li-ion battery (click to link)
