Protection Circuit Module (PCM) with Equilibrium function for 37V Li-Ion Battery Pack at 15A limit

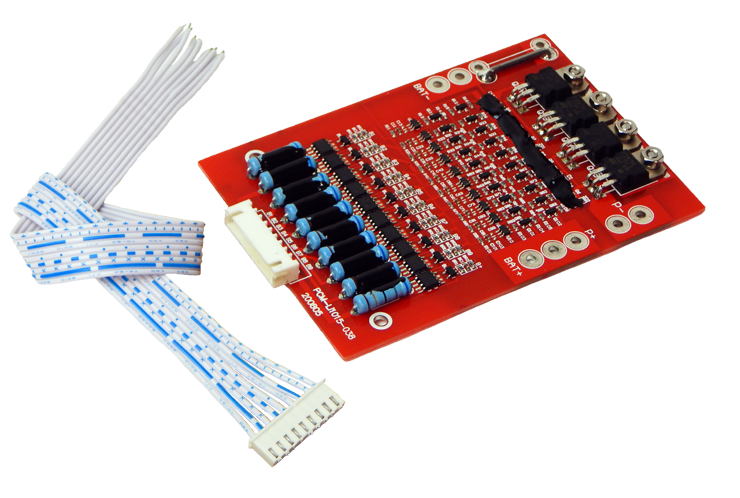

MODEL # PCM-BL010S-132 Protection Circuit Module for 10 Cells (37V) Pack

This protection circuit is specially designed for 37 V Li-Ion / polymer Li-Ion Battery pack with 15 A discharging rate.  Different with normal PCB, it provides equilibrium function after battery pack is fully charged, e.g. PCM will detect each cell's voltage and trim higher voltage until other cell's voltage reach same,therefore allow Li-ion cell has longer service life. Also the PCM  will provide the following protections:

• Keep 37V Li-Ion Battery pack from overcharge
• Balance each cell at Max. 4.2/cell ( required voltage tolerance within 0.2V for each cell)
• Keep 37V Li-Ion Battery pack from over-discharge
• Limit 37V Li-Ion Battery pack's discharging current below 15 A.
•    Please download the specification here.

Features:

• Apply for 10 Cells  Li-ion / Li-polymer Battery Pack with discharging current  < 15A
• Internally Trimmed Voltage Limits to balance each cell. Please wait 30 minutes for this equilibrium function to take place after charger indicated battery pack is fully charged.
• 37A Discharge Current Limit Detection
• Dimension:  3.3"(85mm) x 2.3"( 60mm)
• In order display battery energy level from the PCB, you need to order a fuel gauge display here
• Need other customized voltage of PCB/PCM with different size? Please click below to order
• Customized 2 Cells PCB for 7.4V Li-Ion / 6.4V LiFePO4
• Customized 3 Cells PCB for 11.1V Li-Ion / 9.6V LiFePO4
• Customized 4 Cells PCB/PCM for 14.8V Li-Ion / 12.8V LiFePO4
• Customized 5-8 Cells PCB/PCM for 18.5V-29.6V Li-Ion / 16V-25.6V LiFePO4
• Customized 8-16 Cells PCB/PCM for 29.6V-59.2V Li-Ion / 25.6V-51.2V LiFePO4
• Customized 16-26 Cells PCB/PCM for 59.2V-96.2V Li-Ion / 51.2V-83.2V LiFePO4

Warning

• If you want to use this pcm for a battery that is rated less than 15A drain, you must add additional protection device to protect the battery itself. Such as: proper rated polyswitch.
• To achieve balance, each cell in battery pack must has equal voltage within tolerance of 0.2V.
• You must be professional in Li-Ion battery pack to buy the PCM. Misusing PCM may cause battery damage or explode.  We are not responsible for any damage caused by user.

Batteryspace is not responsible for any damage cause by misunderstanding and misuse! Please read the following instruction carefully before assembling.
