Protection Circuit Module (PCB) for 7.4V Li-Ion Battery Pack (8A limit) with Fuel Guage Socket

Protection Circuit Module Specifications  For 7.4V Li-ion Battery  Pack

Model: PCB-S2A8Sq-GS

Apply for:

• 2 cells  Li-ion /Li-polymer battery pack protection
• Adopt  Seiko  S-8232  protection  IC
• Adopt  CEG8205   MOSFET
• Built in Fuel gauge socket
• Dimension: L49*W34*T4.0mm
• Weight: 0.1Oz (2.8 grams)
• Need other customized voltage of PCB/PCM with different size? Please click below to order
• Customized 2 Cells PCB for 7.4V Li-Ion / 6.4V LiFePO4
• Customized 3 Cells PCB for 11.1V Li-Ion / 9.6V LiFePO4
• Customized 4 Cells PCB/PCM for 14.8V Li-Ion / 12.8V LiFePO4
• Customized 5-8 Cells PCB/PCM for 18.5V-29.6V Li-Ion / 16V-25.6V LiFePO4
• Customized 8-16 Cells PCB/PCM for 29.6V-59.2V Li-Ion / 25.6V-51.2V LiFePO4
• Customized 16-26 Cells PCB/PCM for 59.2V-96.2V Li-Ion / 51.2V-83.2V LiFePO4

Electric  performance:

• Overcharge protection voltage for single cell: 4.30V    +/- 0.025V
• Over-discharge protection voltage for single cell: 2.40V     +/- 0.08V
• Over-current  detection  protection: 8A +/-1A
• Supply current: Max 10uA
• Short circuit protection
• Protection  circuitry  resistance: <=50mohms

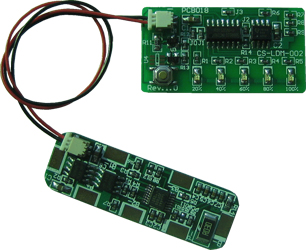

• In order display battery energy level from the PCB, you need to order a fuel gauge display here
• For more details about this PCB specifications, please download the data sheet.
