PCB for 3.7V Li-ion (18650/18500) cell Battery (3A +/-1A Limit)
|
In Stock
Part Number: PCB-S1A3B
Product ID # 2578
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $1.74 |
| 21 to 50 | $1.70 |
| 51 to 100 | $1.66 |
| 101 to 500 | $1.61 |
|
Protection Circuit Module Specifications for 3.7V Li-ion Pack
All Li-Ion Battery packs must connect to a protection circuit module to protect Li-Ion Battery from over charge, over discharge and prevent accidental battery explosion due to its extra high energy density. This protection circuit is specially designed for 3.7V Li-Ion and polymer Li-Ion Battery.

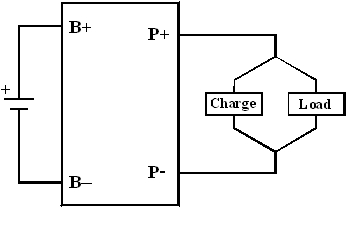

Please connect battery pack with the circuit as the following drawing with wire provided.
Please be advised that this circuit will provide the following protections:
* Keep 3.7V Li-Ion Battery pack from overcharge beyond 4.35V
* Keep 3.7V Li-Ion Battery pack from over-discharge below 2.4V
* Keep 3.7V Li-Ion Battery pack 's discharging current > 8.5A
Batteryspace is not responsible for any damage caused by misunderstanding and misuse! Please read the specification carefully before assembling it to battery pack.
| Model: USC-PRO-PCB04 3.6V
|
|
Apply for
- Single Cell Li-ion /Li-polymer Battery Protection
- Adopt D&W DW_LP1 Protection IC
- Adopt ST STC5NF20V MOSFET
- Dimension (LxW) : 4.26mm x 28.95mm
PCB Indications
- Port Remark
- B+ Battery (+)
- B- Battery (-)
- R1 Resistance ( optional)
- R2 Resistance ( optional)
- P+ OUT (+) /charge (+)
- P- OUT (-) /charge (-)
How to connect circuit with battery pack
|
|
- This round shape PCB is specially designed for 3.7V single 18650 Li-ion cell that can be mount on top of the 18650 cell
- Dimension (DxL): 15mm x 1.59mm
- The PCB will provide the following protections:
- Prevents 3.7V Li-Ion Battery pack from overcharging 4.35V
- Prevents 3.7V Li-Ion Battery pack from overdischarging 2.4V
- Maintains 3.7V Li-Ion Battery pack's discharge current lower than 2.0.
- Protect battery from short circuit and wrong polarity

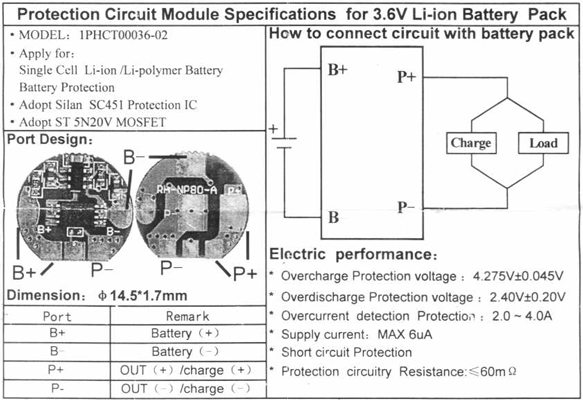

- Please see diagram below on how to connect this pcb to battery pack.
Batteryspace is not responsible for any damage cause by misunderstanding and misuse! Please review following instruction carefully before assembling it to battery pack.
 T color=#006400>Electric performance
- Overcharge Protection voltage for single cell: 4.35V +/- 0.025V
- Over-discharge Protection voltage for single cell: 2.40V +/-0.08V
- Over-current Protection <= 8.5 A +/-1A
- Supply current: MAX 6uA
- Short circuit Protection
- 0 V charge
- Protection circuitry Resistance: <= 80m ohms
|
|
