NiteHawk 10W Equivalent Emitter Bike Light with Li-Ion Battery ( 32.56 wh) / 1.2A UL listed Smart Charger

Your Price: $129.95
In Stock

Product ID # 2932
Part Number:
CH-UNLI1B01



Quantity Discounts

QuantityAmount
5 to 20$126.05
21 to 50$123.45
51 to 100$120.85
101 or more$116.96

Finally, Combining Nite-Hawk Emitter AL-X Light with Powerizer Li-Ion Battery  -- Provide Super-bright LED Bike Light system with lightest weight and the longest burn time in the world!.

  • One 10W LED Emitter AL-X Light. (Revolutionary Super Birght Nite Hawk Technology)
    • 10 W Brightness light but with only 1.2W Power consumption.
    • Push button switch with easy access on light pod.
    • Revolutionary Super Bright Nite Hawk Emitter Technology. Estimated Emitter Life 100,000 Hours.
    • Total Internal Reflection (T.I.R.) Optical Lens - Engineered by Nite Hawk to harness the power of the Emitter.
    • Luxeon Emitter
    • Weight 4.8 Oz (150 grams)
    • Compact, Light Weight & Durable Aluminum Light Pod ( Pod Rotation: 360o, Pod Pivot: Up & Down )
    • Water resistant for all weather use.

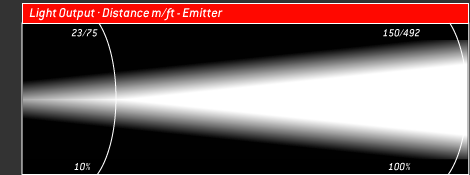

    • 2 Power Settings: 10% & 100%
    • 4'  Waterproof Nite Hawk Emitter male connector

  • One Li-Ion 18650 6V Regulated (32.56wh, 1A rate) Battery Pack with Nite Hawk Emitter Female Plug
    • High quality 7.4V 4400mAh Li-Ion rechargeable battery pack made of  4 pcs 2200mAh cylindrical 18650 cells  with PCB & 2 Amp polyswitch
    • Packed side by side with 2 series and 2 parallel (2S2P)
    • Two Termails from battery pack:
      • 1 discharge terminal(Nite Hawk Emitter female plug) for connecting with the light (Nite Hawk Emitter male plug).
      • 1 Charging terminal: 6" long 5.5mmx2.1mm Female Barrel plug
    • Battery operates Voltage:
      • Charging terminal: 7.4V
      • Discharging terminal: 6V by regulator
        • Must locate regulator on the buttom 75mm x 75mm of plane
    • Burntime 27 hours for 100% power setting. (1.2W Output)
    • Burtime   271 hours hours for 10% power setting. (0.12W Output)
    • Dimension (LxWxH): 75mm (3.0") x 75mm (3.0") x 34mm (1.3")
    • Weight:  7.8 oz (220 grams)
    • A nylon bag is included for carrying battery pack either on belt or on the bike front bar
    • Need more battery? Please order here.
  • One1.2A UL listed smart charger
    • One universal smart charger  (1.2 Amp) included with 100- 240V AC input for worldwide use.
    • Charger will cut-off power automatically when battery is full. Charging time is about 5.5hours
    • If you need AC plug adaptor for international, please order here.
  • Helmet Mount Base:
    • Low Profile & Light Weight Design
    • Hook & Loop Attachment to Bicycle Helmet
  • Quick Release Handlebar Mount.( Excluded small Flat head screw driver)
    • Works with standard and 31.8mm (1.2") oversized handlebars.
    • Weight 0.2 OZ. (5.66 grams)
  •  Download Spec Sheet





The light attached to helmet mount



  The light attached to handle bar






How to connect the regulated 6V battery pack to light



 How to charge the regulated 6V battery pack.





The buttom view of the pack
