NiMH Battery Pack: 24V 10 Ah for Electric Bike and Scooter (3R767)
|
|
In Stock
Product ID # 1258
Part Number: EB-HD20R3TM
5 Business Days!
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $242.45 |
| 21 to 50 | $237.45 |
| 51 to 100 | $232.45 |
| 101 or more | $224.96 |
|
| Packing
|

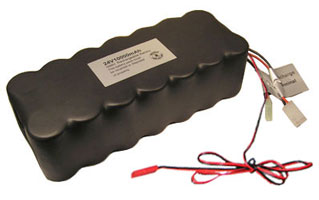

- Consist of 20 pcs High quality D size NiMH 10000 mAh Cells packed in 7+6+7 configuration.
- Special Harvey Duty Shrink Tubing -- Polyolefin, provide extra protection for the battery pack.
- Charging terminal and Dis-charging terminals separated
|
| Voltage
|
24V ( working ) ( 29V at peak)
|
| Capacity
|
10000mAh ( 240 wh)
|
| Charging current
|
1.5 A standard 5.0 A max.
|
| Discharging rate
|
10A ( standard ) 30A ( Max.)
|
| Protection
|
|
| Pre-wired
|
- Charging terminal: 18AWG wire with mini Tamiya Male
- Discharging terminal: 14 AWG wire with standard Tamiya Male
|
| Dimension
|
9 1/4 "L x 3 3/4 "W x 2.5 "H
|
| Weight
|
7.5 Lb ( 50% less weight than 10Ah24V SLA battery)
|
| Tips
|
- Please use the charger below with temperature sensor for avoiding the battery damage caused by overcharging.
|
| Applications
|
- 24V 10000mAh NiMH Battery Pack for Electric Scooter and Any DC 24V devices.
|
| Cautions
|
|
|
