NiMH Battery Combo: 12V 13Ah Battery + Charger (9.6V-18V) for Sea-Scooter / Walking Robot
|
Out of stock
Part Number: CH-UN180C38
Product ID # 2069
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $192.98 |
| 21 to 50 | $189.00 |
| 51 to 100 | $185.02 |
| 101 to 500 | $179.06 |
|
| Packing
|

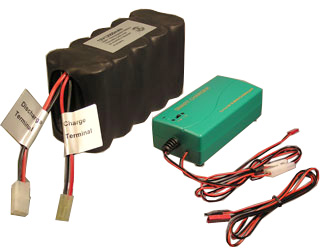

- 12V 13 Ah (13000mAh) NiMH Battery Pack made by 10 pcs high quality NiMH F size cells. .assembled side by side in two rows ( 5+5)
- Wrapped by heavy duty heat shrink tube
|
| Voltage
|
12V ( working ) 14.5V ( peak)
|
| Capacity
|
13Ah or 156 wh
|
| Charging Rate
|
Standard 1.8 A Max. 5 A ( for each 12V 10Ah module)
|
| Discharging Rate
|
- Standard rate: 13 Amp ( Recommended and warranted)
- Highest rate for continuous running: 30Amp
- Max. Rate for short time: 60Amp ( Not recommend as working rate )
|
| Pre-wired
|
Two terminals are in the battery pack. Charging and discharging plug are separated for protecting battery overcharging and power off during discharging
|
| Dimension
|
6.55"L x 2.75"W x 3.6"H
|
| Net Weight
|
5.5 lbs (2495 gram)
|
| Smart Charger (included)
|
|
| Applications
|
|
| Cautions
|
- Please don't discharging the battery pack below 10V ( 1.0 V / cell) Deep discharging may damage NiMH battery pack.
- Charging battery immediately every time it is discharged. Never storage the battery pack at below 10V.
- Please don't use charger terminal to discharge battery
- The provided temperature sensor need to be attached while charging.
- Please read more safety warning at the link
|
| How To Charge The Battery Pack:
|
Please download
Instruction manual for charging NiMH pack by Chun-180 Charger.
|
|
