NiMH Battery Pack: 12V 5000mAh NiMH Battery Pack for 12V DC Portable Devices / Walking Robot w/ Combo Option

Your Price: From $56.95 to $71.95
Lead Time: 5 Business Day

Product Options

Combo Option:


 Packing

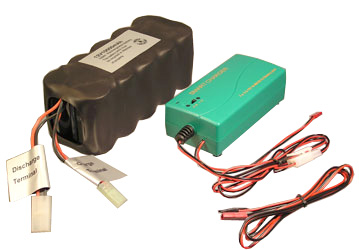

  • 12V, 5000mAh NiMH Battery Pack made by 10 pcs high quality NiMH C size cells, assembled side by side in two rows ( 5x2)
  • Wrapped by heavy duty heat shrink tube
    • Option 1: Battery Pack Only
    • Option 2: Battery Pack and Charger Combo
     Voltage      12V ( working )    14.5V ( peak)
     Capacity      5Ah   or 60wh
     Charging Rate      Standard 1.8 A     Max. 5 A  ( for each 12V 10Ah module)
     Discharging Rate
    • Standard rate: 5 Amp  ( Recommended and warranted)
    • Highest rate for continuous running:  10Amp
     Prewired
    • Two terminals are in the battery pack. Charging and discharging plug are separated for protecting  battery overcharging.
      • Discharging plug is male standard Tamiya connector with 14 AWG wires
      • Charging plug is mini male tamiya connector with 16 AWG wires, and connected a 65o thermostat.  to battery pack to protect battery from over charging.
     Dimension       2.0" H x 2.0" W x 5.25" L
     Net Weight       2.2 lbs
     Related Products
    • Please choose  12V smart NiMH battery pack chargers to recharging the battery pack.
    • Must charge battery from charging terminal
    • The charging time is about  3.5 hrs. Please set current level to 1.8A
    • You may consider advanced 12.8V LiFePO4 battery packswith higher energy density and 4 times longer cycle life ( click underlined to order )
       Warnings
      • Please don't discharging the battery pack below 10V  ( 1.0 V / cell)  Deep discharging may damage NiMH battery pack.
      • Charging battery immediately every time it is discharged. Never storage the battery pack at below 10V.
      • Please don't use charger terminal to discharge battery
      • Please read more safety warning  at the link
      • NOTICE: Any changes made to our battery and charger will VOID warranty.

      How To Charge The Battery Pack:

      Connect adapter from Mini Tamiya to Standard Tamiya to "Charger Terminal"

      Plug the adapter to "smart charger".  Please never use charger terminal for discharging

      Notes Things to know about Nimh Batteries

      Related Products

      Product Reviews

      (1 Rating, 1 Review) Average Rating:
      ratingratingratingratingrating
      ratingratingratingratingrating
      Battery and charger works, instructions were good
      mike21582 (Canonsburg, PA) 6/27/2012 11:47 AM
      Battery and charger works, instructions were good
      ---------------------------
