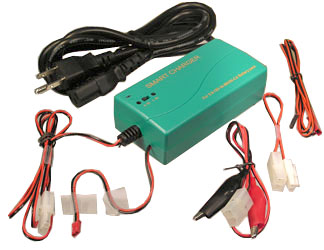

Multi-Current Universal Smart Charger for 9.6V - 18V NiMH Battery Packs (Tamiya Plug) , UL Listed

• Manufacture part# H02400918-US-1

• Universal Fast Smart Charger is designed for charging any NiMH / NiCd Battery Pack from 9.6V - 18V, for 8 to 15 cells pack.
• LED flashing red-green-red before charging (no battery connection) in order to test the IC of the charger if ready to use.
• It is a very smart charger.  Just plug it in and wait for the battery to get fully charged. Red LED indicates charging and Green LED means fully charged
• Short circuit protection: No output voltage from the charger if the battery is not connected.
• 120-240V AC input for worldwide use.
• Built in temperature sensor to double ensure the battery pack from overcharged
• Extra battery temperature sensor wire included for your battery which do not have thermostat build in the battery. You need to DIY to add wire on you battery if necessary.
• First smart charger  that get UL safety approved on the market

• Auto detect battery pack voltage and set up proper charging voltage
• Cut-off power automatically by negative delta V IC when battery pack is fully charge.
• Built in IC protecting battery from over current, short circuit & reverse polarity.
• One temperature sensor outlet  ( Female BEC connector) is installed with the charger to double protecting battery from overcharged.
• You must use temperature sensor to charge 12V or higher NiMH battery pack, except water bottle nimh batteries.
• For <12V battery pack, you may recharge battery without sensor. However, putting a temperature sensor on the battery pack is always a good idea

• For battery pack between 900mAh and 2800 mAh, please use the low level switch -- charging rate: 0.9A
• For battery pack over 2800 mAh, please use the high level switch -- charging rate: 1.8A

The smart charger will cut-off power automatically when battery is full. However, Charging time can be estimated as the follow:

Time ( Hrs ) = Battery capacity (Ah) / Charging current ( 0.9A or 1.8A )

• One 5' cable with female Tamiya connector and two clips which allow you to connect a battery pack to the smart charger.
• One  temperature sensor  ( 70^oc thermistor ) is included for battery pack which don't have thermostat protection.  It must be connect between battery charger and the battery pack before charging to protect battery from overcharging.  It will cut-off power if battery temperature is over 70 ^oC.
• One connector adaptor from standard male Tamiya to Mini female Tamiya for charging RC air battery packs.

• If you use this charger for our bike light battery pack, please make sure to select our 2 Pins Female Connector to Waterproof & Lockable Male Plug . Otherwise, charger cannot connect to battery pack ( Please choose from product option )
• If you would like to use this charger in your car,  you can choose our 100W DC-AC inverter, then you can charge your battery anywhere
• Other connector options to fit your batteries: Adaptor from Male lockable Water Proof & lockable connector to Standard Male Tamiya connector  and Connector: Adaptor from Tamiya Male Adaptor to 2 pins Universal Male

How to use Temperature sensor

(1) attach temperature sensor to battery pack inside firmly  --- you can use electronic tape or glue to attach the sensor to one of battery's surface

(2) Plug (red, BEC ) connector into the temperature socket into the charger

• CE & UL approved
•  EMC &  ESV approved.
•  Please download specification of  (0.9-1.8A) for any 9.6V- 18V NiMH/NiCd pack charger

• Please don't use the charger to charge battery pack with capacity less than 900 mAh
• If your battery pack is 12V or more, please always use temperature sensor (included) to double ensure power cut-off.  The temperature sensor shall be attached to battery pack firmly by electric tape or glue (see above to see how)
• If you have question on what current setting to use, please check the battery specification to find out what is the maximum charging current before selecting the charging current.
• The charger is designed for indoor use only.
• The charger should be horizontally positioned and work in well ventilated condition, avoid moisture and keep it away from inflammable explosive goods.
• Ambient temperature shall not be more than 40 degree C when using the charger
• Remove the AC power before connect or disconnect the charger with batteries.
