LiFePO4 Prismatic Battery, Charger and BMS Package: 48V, Choose from: 20Ah, 40Ah, 60Ah, 100Ah or 200Ah (w/CAN)- UN 38.3 Passed (DGR)

Your Price: From $1,221.00 to $6,894.00
Product ID#6748. Lead Time: 3 Weeks!

Product Options

Package:

Personalizations

* denotes required field

Temperature Setting*


Features

*Important Shipping Regulation Due to DOT shipping regulation, this battery pack is not pre-assembled and will be shipped in several boxes.
Packing Combo
Voltage 48~ 51.2 V (working)   60.8V (peak)  40 V ( cut-off)
Capacity 20Ah (1000Wh) / 40Ah (2048Wh) / 60Ah (3072Wh) / 100Ah (5120Wh) / 200Ah (10kWh)
Cycle life >1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Protection

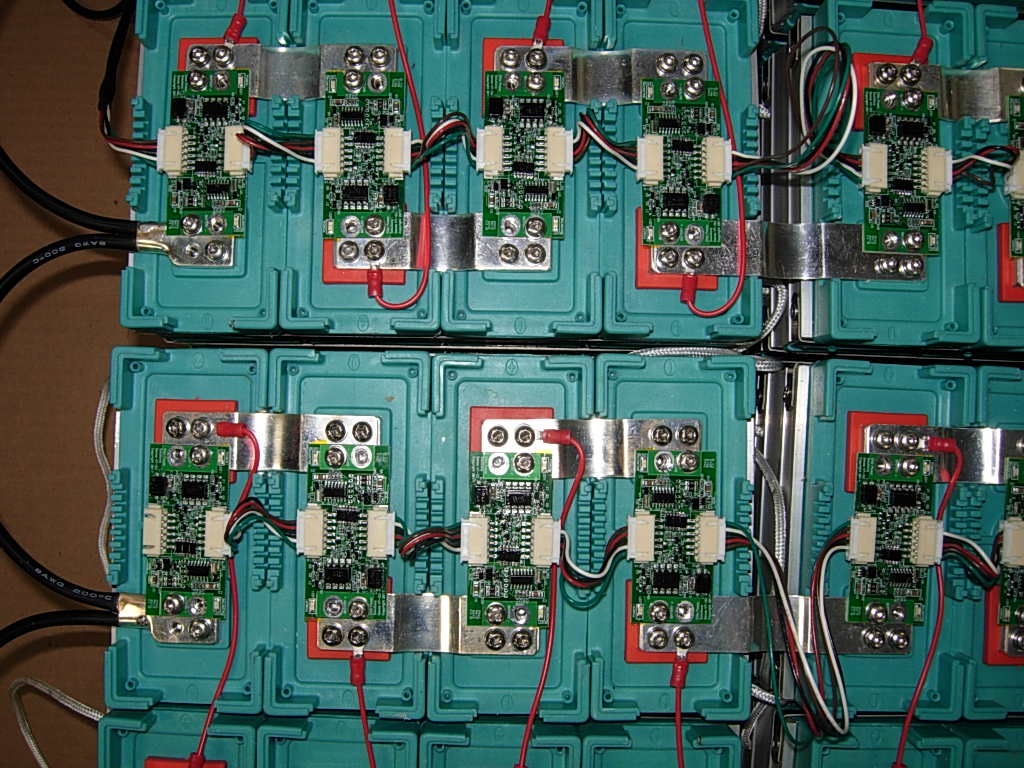

  • 4 pcs BMS-EL is installed to maintain balance voltage of each cell.
  • For 200Ah pack, use BMS-EL-V6
    • Green LED On: "Finish Balancing / Ready to discharge"
    • Red LED On:  "Operate Balancing"
Prewired
  • Positive & Negative terminals are included
  • Charge / Discharge terminal : Red = Positive, Black = Negative
  • You must change wire if your application's charge / discharge current is over 100A
Discharge Rate
  • 20Ah pack: <60A continuous, 200A pulsed
  • 40Ah pack: <120A continuous, 400A pulsed
  • 60Ah pack: <180A continuous, 600A pulsed
  • 100Ah pack: <300A continuous, 1000A pulsed
  • 200Ah pack: <600A continuous, 2000A pulsed
Charging rate
  • 20Ah pack: <20A continuous,  <60A Max
  • 40Ah pack: <40A continuous,  <120A Max
  • 60Ah pack: <60A continuous,  <180A Max
  • 100Ah pack: <100A continuous, <300A Max
  • 200Ah pack: <200A continuous,  <600A Max
Note International Customers: Due to the high shipping cost , we are sorry we do not issue warranty, return or refund for this item. You are buying at your own risk.

Dimensions and Weights

Battery Dimension(LxWxH) per each 12.8V module
  • 20Ah pack:80X180X185 mm or 3.2X7.1X7.3 in
    • 323mm x 185mm x 185mm or 12.7X7.3X7.3 in (Final dimension)
  • 40Ah pack:125X208X180 mm or 4.9X8.2X7.1 in
  • 60Ah pack: 125X280X180 mm or 4.9X11.0X7.1 in
  • 100Ah pack:280x140x243 mm or 11x5.5x9.6 in
  • 200Ah pack:500x259x142 mm or 19.25x10.2x5.5 in
    • There are 4 modules in this package, the final dimension depends on how you organize those modules.
Max Battery's Shipping Weight
  • 40Ah pack:Battery Weight: 12kg (27 lbs)
  • 40Ah pack:Battery Weight: 29.4kg (64.8 lbs)
  • 60Ah pack:Battery Weight: 42.6kg (100.0 lbs)
  • 100Ah pack: Battery Weight: 54.4 kg (120.0 lbs)
  • 200Ah pack: Battery Weight: 99.6 kg (220.0 lbs)
Total Shipping Weight: include batteries, charger and BMS This combo is not pre-assembled and will be shipped in several boxes.
  • 20Ah pack: 57 LB
  • 40Ah pack: 89 LB
  • 60Ah pack: 112 LB
  • 100Ah pack: 140 LB
  • 200Ah pack: 250 LB

Applications

  • For 48V applications, like EV, HEV, ebike, motorcycle, Golf Cart, marine boat
  • You may build battery pack for higher voltage (series connection) or higher capacity (parallel connection)
  • Burn-time = Battery's Wh rate / motor's wattage

Warnings

  • To keep battery for longer cycle-life with the best balancing function, we recommend customer to charge battery while discharging.
  • 48V LiFePO4 Prismatic battery pack shall be cut-off at 60.8V during charging and 40.0V during discharging. If over discharge to 40V (2.5V/cell), please recharge the pack right away. Otherwise the battery is over discharge and cannot recover!
  • Please click Knowledge on LiFePO4 battery to learn more detail
  • International Customers: Due to the high shipping cost , we are sorry we do not issue warranty, return or refund for this item. You are buying at your own risk.

Related Products

  • Other Options for prismatic batteries you might want to consider
  • Please choose to add a relay (Over discharge protection) to this package or purchase a relay yourself.
  • Please choose a 12V battery to power BMS and relay.
