LiFeMnPO4 Prismatic Battery and Charger Package: 24V, Choose from: 20 Ah, 40Ah, 60Ah, or 100Ah

Your Price: From $395.00 to $1,460.00
Product ID: 6654. Lead Time: 5 Business Days!

Product Options

Package:


Features

*Packing Combo
  • 24V LiFeMnPO4 Prismatic battery Package (8S configuration). Package options are : (Select via drop down option menu)
  • Use two 12.8V UN38.3 tested battery pack.
Voltage 24~25.6 V (working)   28.4V (peak)  20.0 V ( cut-off)
Capacity 20Ah (512Wh)  / 40Ah (1024Wh) / 60Ah (1536Wh) / 100Ah (2560Wh)
Cycle life >1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Protection
  • 8 pcs LED balancing PCB installed on each cell to maintain balance voltage after charging.
Prewired
  • 20Ah pack: 9" long 12 AWG open end wire
  • 40Ah pack: 9" long 6 AWG open end wire
  • 60Ah pack: 9" long 6 AWG open end wire
  • 100Ah pack: 9" long 6 AWG open end wire
    • Charge / Discharge terminal : Red = Positive, Black = Negative
    • You must change wire if your application's charge / discharge current is over 100A
Discharge Rate
  • 20Ah pack: 40A Constant rate, 200A CCA <10sec,
  • 40Ah pack: 80A Constant rate, 400A CCA <10sec,
  • 60Ah pack: 120A Constant rate, 600A CCA <10sec,
  • 100Ah pack: 200A Constant rate, 1000A CCA <10sec,
Charging rate
  • 20Ah pack: 20A Recommended, 60A Max
  • 40Ah pack: 40A Recommended, 120A Max
  • 60Ah pack: 60A Recommended, 180A Max
  • 100Ah pack: 100A Recommended, 300A Max
Note International Customers: Due to the high shipping cost , we are sorry we do not issue warranty, return or refund for this item. You are buying at your own risk.

Dimensions and Weights

Battery Dimension(LxWxH) per each 12.8V module
  • 20Ah pack: 178x76x165  mm or 7x3x6.5 in
  • 40Ah pack: 208x125x180 mm or 8.2x4.9x7.1 in
  • 60Ah pack: 280x125x180 mm or 11x4.9x7.1 in
  • 100Ah pack:280x140x243 mm or 11x 5.5 x 9.6 in
    • There are 2 modules in this package, the final dimension depends on how you organize those modules.

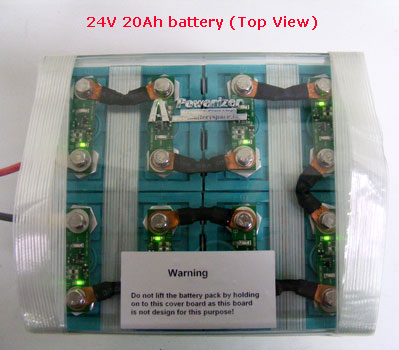

Battery Dimension(LxWxH) for 24V module as shown in picture
  • 20Ah pack: 178x162x195 mm or 7 x 6.4x 7.7in
  • 40Ah pack: 208x260x190 mm or 8.2x10.3x7.5 in
  • 60Ah pack: 280x260x190 mm or 11x10.3x7.5 in
  • 100Ah pack: 280x290x253 mm or 11 x 11.4 x10 in
    • There are 2 modules in this package, the final dimension depends on how you organize those modules.
Battery's Net Weight
  • 20Ah pack: Battery Weight: 7.7kg (17 lbs)
  • 40Ah pack: Battery Weight: 14.7kg (32.4 lbs)
  • 60Ah pack: Battery Weight :21.3kg (50.0 lbs)
  • 100Ah pack: Battery Weight: 27.2 kg (60.0lbs)
Max Battery's Shipping Weight (24V Pack)
  • 20Ah pack:  22.7kg (50.0lbs + 5lbs)
  • 40Ah pack:  31.8kg (56.0lbs + 5lbs)
  • 60Ah pack:  40.9kg (60.0lbs + 5lbs)
  • 100Ah pack: 49.9 kg (68.0lbs + 5lbs)

Applications

  • 24V application, like EV, HEV, e-bike, motorcycle application
  • You may build battery pack for higher voltage (series connection) or higher capacity (parallel connection)
  • Burn-time = Battery's Wh rate / motor's wattage

Warnings

  • To keep battery for longer cycle-life with the best balancing function, we recommend customer to charge battery while discharging.
  • 24V LiFePO4 Prismatic battery pack shall be cut-off at 30.4V during charging and 20.0V during discharging. If over discharge to 20V (2.5V/cell), please recharge the pack right away. Otherwise the battery is over discharge and cannot recover!
  • Please click Knowledge on LiFePO4 battery to learn more detail
  • International Customers: Due to the high shipping cost , we are sorry we do not issue warranty, return or refund for this item. You are buying at your own risk.
