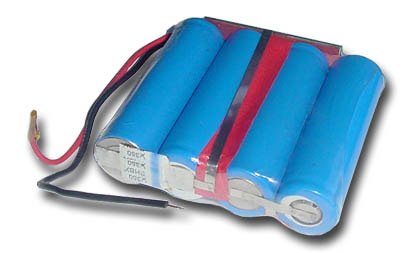

Li-ion 18650 Battery: 14.8V 2200mah (32.56Wh) battery module ( Flat) Prewired with PCB

Sale Price: $55.95
In Stock
Part Number: LCH2S4WR-IC

Product ID # 4270

Quantity Discounts

QuantityAmount
5 to 20$54.27
21 to 50$53.15
51 to 100$52.03
101 to 500$50.36



Packing
  • 14.8V , 2200mAh battery pack is made by 4 pcs High quality Sanyo/LG/Other Top Brand Korea 18650 2200mAh  Li-Ion cellspacked by 4 series side by side
  • The battery pack is Wrappedby white PVC shrink tube

 Voltage      Voltage: 14.8V (working)   16.8V ( peak)  11.0V ( cut-off)
 Capacity       2200 mAh min. (32.56 wh)
Protection
  • One PCB (8A) installed with the  battery pack and protects the battery from
    • Over-charge       (>16.8V)
    • Over-discharge  ( < 11.0 V)
    • Over drain ( >  8 Amp)
    • Short circuits
  • One 4.2 Amp polyswitch  installed to limit  max. discharging current at 4A
Pre-wired
  • 6"  length 20  AWG wires without connector

Max. Discharging Rate        4.2 Amp limited by polyswitch
Dimensions       Length x Width x Thickness:  76mmx 73mmx 20mm
Weight        6 oz
 Smart Tips
 Applications
  • Using this battery module, you may build 14.8V battery pack up to 4400 mAh  by parallel connection of two packs.
  • You may build up 14.8V Li-ion pack with 6600 mAh or 8800mAh by parallel connection of three or four packs.

 Warning
  • Li-Ion battery may be exploded if misusing.  We are not responsible for any damages or losses caused by misusing (included but not limited to: improperly charging/discharging,  any changes of this battery pack
  • Always charge battery with attention.  Battery pack shall be placed on a fire-proof place to avoid any accident
  • Please check battery polarity before plug battery into light. Never make wrong polarity connection.  Please check
  • For safety warning please see the link here
 Pack Configuration   Li-Ion 18650 14.8 V 2000mah battery module with Protection IC








Related Products

Product Reviews

(1 Rating, 1 Review) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
Perfect for customizing bike lights
Customer81356 (Unknown) 4/25/2008 8:20 PM
I used this battery with two different customized lights now, and I very happy with it.
