Battery Management System ( BMS) Kit for LiFePO4 Battery Pack with LCD Monitor

Your Price: $340.00
In Stock

Product ID # 6411
Part Number:
BMS-EP128

Lead Time: 1 week

Personalizations

* denotes required field

Voltage of whole system*
Capacity of whole system*
Number of cells in the whole system*
CAN communication*
Cable between BMS-EP128 and Slave Board*
Temperature Setting*
What is maximum continous discharge current (Support upto 500A)*


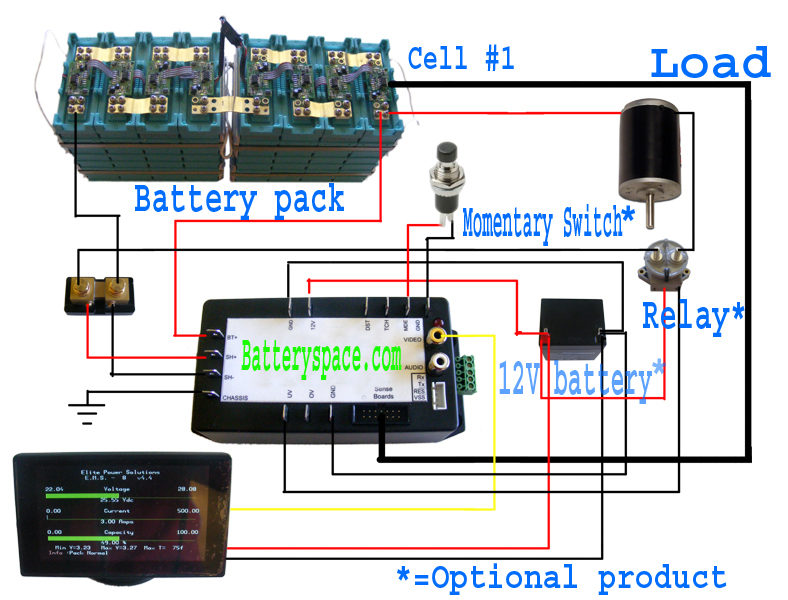

Features

  • This battery management system is designed to support from a 4 cells (12.8V) LFP Prismatic module of 20Ah, 40Ah , 60Ah,  100Ah or 200Ah upto a maximum of 156 cells, 500Ah capacity and max of 500A discharge with visual display function.
  • A distributed system measuring voltage and temperature of each cell
  • Daisy chain connection supporting up to 140 cells
  • Cell balancing
  • Integrated Ground Fault Detection and alarm output
  • Pack voltage measurement
  • Pack SOC calculation
  • Low voltage and high voltage alarm cutoff outputs
  • Optional CANBUS or MODBUS communication output
  • Composite video output
  • Perfect for Electric Car, Electric Golf Cart or other application where you are looking to replace the original lead acid battery with LiFePO4 cell to reduce the weight, improve cycle life and newer technology.
  • Note: Slave modules & connection cable between CPU and slave modules are not included. Must order separately!

Please download the Specification here

  • Items Displayed: Pack voltage, current and capacity on main screen, individual cell number, cell voltage and cell temperature on detail screen(s).
  • CPU Power: 8-20V, 120mA
  • Battery Voltage: up to 500V
  • Number of Cells Supported: up to 140
  • Shunt Input: 500A = 50mV
  • Voltage Resolution: 0.1V
  • Current Resolution: 1A
  • Temperature Range: -99F to +199F or -146 to +92C
  • Video Output: Composite Video, Color, NTSC
  • Measurement Accuracy: <1% of Full Scale
  • Measurement Speed: 3 times per second main screen; 1 time per second detail screen(s).
  • Cell Voltage: 2.00 to 4.50V
  • Balancing Threshold Voltage:3.55V
  • Balancing Current: 0.5A
  • Digital Output Current: 4A Surge for 100mS; 2A Continuous
  • Output Delay (default): 30 seconds
  • Ground Fault Detection: 2mA (5000 Ohm/Volt)
  • CPU Size: 5.70 x 2.60 x 1.80 in
  • Shunt Size: 3.25 x 1.75 x 1.75 in
  •  Please download user manual
  •  Please download Step-by-step Setup Guide
  •  Please download Canbus specification

Package Content

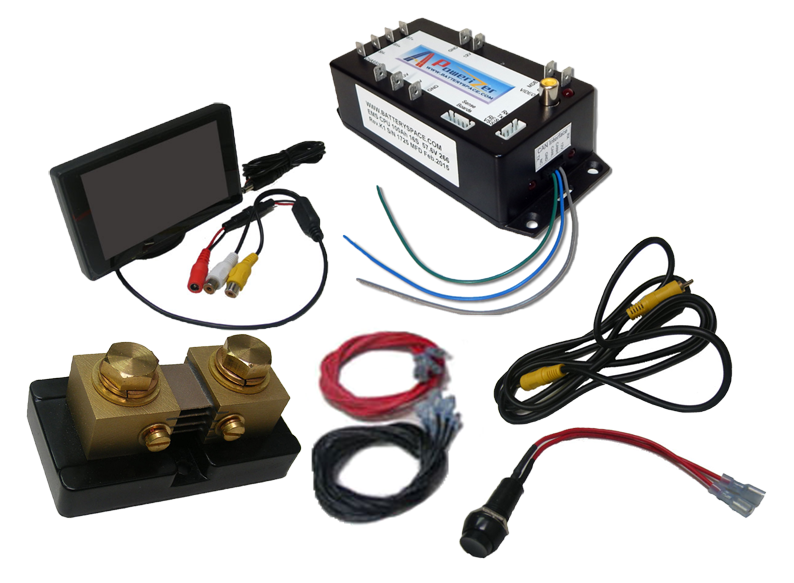

  • 1 x Master Controller Module (Size 146 x 68 X 50 mm)
    • The Master Module functions are:
      • Communicate with each Slave Module on monitoring the max/min voltage, max/min current and temperature & perform balance function on each cell.
      • Provide all necessary Data to Display on the LCD Display
      • Provide connection to the Shunt to measure the current
      • Provide connection to the momentary switch to change the information being display on the LCD Display
      • Provide signal to open the Discharge Relay, Charge Relay (if not use with a CANbus charger) to protect the battery pack from over charge, over discharge or high temperature
      • Provide connection to a CANbus charger ( no charge relay will be need!)
  • 1 x LCD Display:
    • Display the status of the total pack's voltage, capacity, power consumption and temperature.
    • Display each cell's current voltage.
  • 1 x Shunt (to measure current upto 500A max) (Size 82 X 45 X 45 mm)
  • 1 x momentary switch
  • 1x cable between CPU (BMS-EP128) to slave sense board
  • 5pcs 2' long Black 18AWG connection cables (contact us if longer cables needed)
  • 4pcs 2' long Red 18AWG connection cables (contact us if longer cables needed)
  • This kit does not include relay, relay is optional.
  • This Kit does NOT include any slave modules (BUT you MUST order separately)
