Category : High Power Polymer Li-Ion Cells

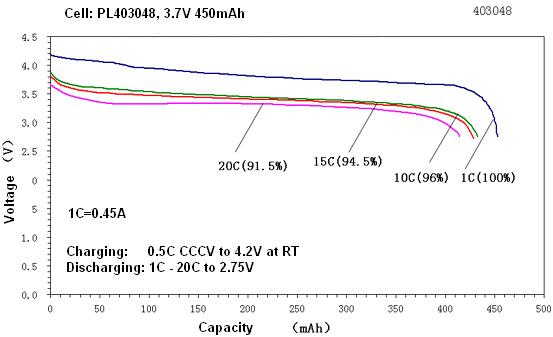

  • High power Polymer Li-Ion batteries are made by adding special chemicals inside cell, which allow discharging rate more than 2C rate. Please click here to see the drawing of Capacity vs discharging rate


 Part # ( click to link)

 Capacity

 (LxWxH) mm

with tolerance +/- 0.5 mm

 Weight

Max Disch. Current

 UL Listed

UN Certified

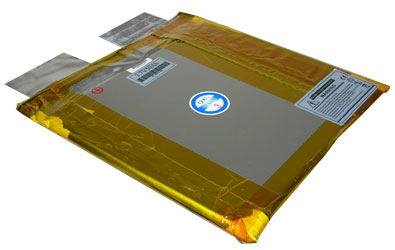

PL-15245300-2C

50Ah

300x245x15

1550g

 100A



 PL-1055275-2C  21Ah 275x55x10.5   406g

 42A

 Yes  Yes
   PL-9759156-10C   10Ah  160x61x10.5  207g

 100A

    Yes   Yes



PL-9759156-5C

10Ah

157x59.5x9.

210g

50A

  Yes Yes

PL-8048168-5C

 6.4Ah

168.5x48.5x8.0

 140g

32A




 PL-7255125-10C

 5.0Ah  125x55x7.2    98g 50A

PL-6745135-10C

4.0Ah

136x45x7.0

90g

40A

    Yes



PL-6050140-10C

4.0Ah

141x50.2x6.0

85g

40A

 Yes  Yes

 PL-4545125-10C

 3.0Ah 125x45x4.5    60g 30A  Yes

PL-7035130-10C

 3.0Ah  130x35.5x7.4   65g 30A

 PL-6045135-10C

 3.0Ah

 135x45.5x6.0

71g

30A






 PL-8034105-20C

 2.5Ah

 105x34.5x8.0

 62g

 50A







 PL-803496-25C

 2.2Ah

 96.5x34.5x8.0

 52g

 55A







PL-604490-20C

2.1Ah

90.5x44.5x6.0

46g

40A



 PL-743495-20C

 1.9Ah

 96x35x7.5

 47g

 38A



 PL-603495-10C

 1.9Ah

 97x34.5x6.2

 40g

 19A



 PLH-703562-10C

  1.4Ah    65x35x7.0    65g 10-20A  Yes



PLH-355585-7C

1.5Ah

85x55x3.5

  31.2g

 10A





PLH-553562-10C

 1.05Ah

62x35x5.5

18g

 10A





 PL-643048-10C

 800mAh

 50x30.5x6.5

   14g

  8.0A


      PL-603048-10C  750mAh  50x30.5x6.0    14g

 7.5A









Displaying products 1 - 20 of 20 results
High Power Polymer Li-Ion Cell: 3.7V 3000 mAh (6045135-10C) 11.1Wh, 30A rate (0.9)
MSRP Price: $18.50
Your Price: $15.50
You Save: $3.00 (16 %)
Product ID: 4404

High Power Polymer Li-Ion Cell: 3.7V 3000 mAh (6045135-10C) 11.1Wh, 30A rate (0.9)
High Power Polymer Li-Ion Cell: 3.7V 3000 mAh (7035130-10C) 11.1Wh, 30A drain rate (0.9)
MSRP Price: $19.95
Your Price: $16.50
You Save: $3.45 (17 %)
Product ID: 4310

High Power Polymer Li-Ion Cell: 3.7V 3000 mAh (7035130-10C) 11.1Wh, 30A drain rate (0.9)
