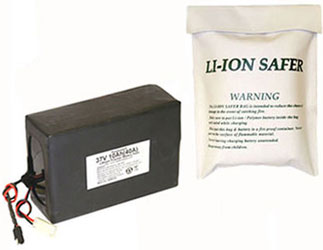

High Power Polymer Li-Ion Battery: 37V 10Ah ( 370 Wh, Ebike Terminal) 40A Drain Rate + A Fire Retardant Bag (30.0)

• 37V 10Ah pack is made by 10 pcs high Power Polymer Li-Ion cell of 3.7V 10000mAh batteries
• The state art of PCM is installed the pack to protect battery from over-charged, over-discharged and over-drained
• Wrapped by heavy-duty Heat shrink tube
• Included 1 pcA Fire Retardant Bag: 295mmx230mmx75mm --- Reduce the chance of damage if caught fire
  • This Fire Retardant Bag (Li-Ion Safer Bag) is intended to reduce the chance of damage in the event of catching fire.
  • Must locate & seal the battery pack in the bag  while charging / leaving without any attention



• One PCM with balance function is installed in the battery pack to balance charging and protect battery module from
  • Over discharge beyond 42V
  • Over discharge below 28V
  • Over drained beyond 40A
  • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
• Charging terminal: 6" 21 AWG with standard Male Tamiya plug.
• Discharging terminal: Discharging terminal:7" 12 AWG wire with standard
• E-bikeconnector which fits with BL-600 e-bike kit
  • Red (Large female Pin) = Positive
  • Black (Small female Pin) = Negative

170mm (6.7") x 72mm (2.8") x 110mm (4.3")

• Please use either 37V Li-Ion smart charger below.
  • For fast charging (3.0 hrs) , You may use5.0A Smart Li-ion battery charger + the connector adaptor
  • You can choose our 3.0A 37V Smart Li-Ion Battery charger to recharge this pack. The estimate charging time is about 5.0hrs.
  • Smart Charger (1.9A, CE listed, UL approved) for 37V Li-ion/Polymer Rechargeable Battery Pack.The estimate charge time is about 7.9hrs
  • Warning:  Please wait 30 minutes after charged to allow PCM to balance the cells to achieve the best performance
• If you connect two of these modules in parallel, you may build a 37 V 20 Ah Battery pack with a 80 Amp discharge rate with suitable wiring
• Strongly suggest you put the battery pack into a water / fire resistant box for safety use
• Optional Quality Multi Departments Bag 5.5x4.5x7.5" Please buy separately here.

• Replace 36V NiMH battery pack with much lighter weight for e-bike
• RC robot and RC aircraft which need high current drain
• Please click here to see the Comparison Poly-Li pack vs NiMH / SLAto know the advantages

• Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misusing
• Please never discharge the battery pack beyond its Max. rating
• Must readbefore place an order. Please downloadfill the form and fax back to 510-439-2808. Attn: BatteySpace-Tech.
• For safety warning please see the link here

Please see our real time testing when attached the pack to e-bike ( 36V 600W conversion kit)

Please click here to download the Video Clip file1(37V 8Ah Polymer Li-Ion pack installed with e-bike )

Please click here to download the Video Clip file2(using a watt-up to monitor drain current during riding at 30A )

• Download user manual.
