Home > DC Motors > DC Motor: Mini DC Motor 3.6V, 28000 RPM , 0.8W for RC Toys and Hobby

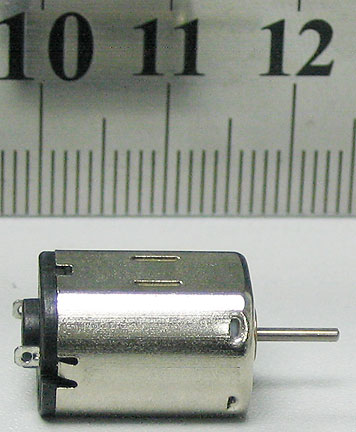

DC Motor: Mini DC Motor 3.6V, 28000 RPM , 0.8W for RC Toys and Hobby
|
In Stock
Part Number: MT-WSMM20
Product ID # 1526
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $4.84 |
| 21 to 50 | $4.74 |
| 51 to 100 | $4.64 |
| 101 to 500 | $4.49 |
|
Technical Specification
|
Horse Power Cont.
|
0.3 w
|
Length of Motor (excluding spindle)
|
16. 8 mm
|
|
Horse Power Intermittent.
|
0.8 W
|
Dimension excluded spindle(LxWxH)
|
16.8mm x 10.1mmx 8.5mm
|
|
Voltage & Current
|
3.6 V DC & 70 mA
|
Length of Spindle
|
6 mm
|
|
Torque Sensitivity
|
23.5 g.cm per Amp
|
Diameter of Spindle
|
1 mm
|
|
Lead
|
Two
|
Reversibility
|
Reversible
|
|
RPM
|
28000
|
Weight per motor
|
0.19 oz
|
Operating Temperature: -10'C (14F) Min, 60'C (140F) Max
Elevation: No impact
Humidity: 75%
|
