DC Motor: Heavy Duty 90V DC Motor 36W + Speed controller ( 115/230V worldwide AC power )

Your Price: $109.90
Out of stock

Product ID # 1967
Part Number:
MT-5400C02



Quantity Discounts

QuantityAmount
5 to 20$106.60
21 to 50$104.41
51 to 100$102.21
101 or more$98.91

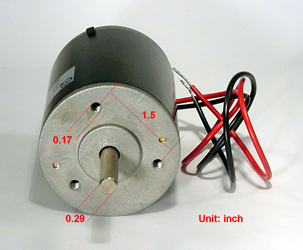

About the Motor
  • High Torgue , Heavy Duty 90V DC Motor for Hobby Projects
  • Perfect  for Hi-Power RC Boats, RC cars, School Projects, Robots and Other Hobby Projects.
  • 2000 Max.RPM
  • Ball Bearing with Quiet Operation
  • Motors are tested before shipping

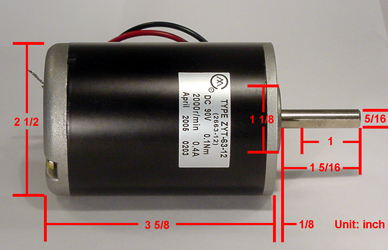

Specifications

Horse Power Cont.  36 W Length of Motor (excluding spindle) 90 mm
Torque 0.1Nm Diameter of Motor 62.5 mm
Voltage & Current 90V DC & 0.4A Length of Spindle 32.5 mm
RPM 2000 Diameter of Spindle (with a flat ) 7.5 mm
Reversibility Reversible Weight per motor 1.9LB


About Speed controller

  • Manufacture part# BC2000
  • Input:  115/230 VAC , 50/60Hz
  • Armature Voltage
    • 0-90VDC (115VAC input)
    • 0-180VDC, 6A (230VAC input)
  • Max current: 6.0A
  • Perfect use to control  MT-5400 90Vdc 36W motor
    • Motor's Red wire to "A+" on board
    • Motor's Black wire to "A-" on board
  • Variable resistor (POT) is included to vary 90V DC motor speed from 0 - 2000 rpm
  • One AC input cable is included
  • For detail specifications and operation manual on the speed controller, please see original datasheet
  • It is suitable for 90VDC motor up to 350W
  • Operating Temperature:   -10'C (14F) Min, 60'C (140F) Max
  • Elevation: No impact
  • Humidity: 75%
  • Dimension (LxWxH) : 112mm(4.4") x 98mm(3.9") x 40mm(1.6")
  • Weight: 13.4Oz (380 grams)
