DC Motor: Heavy Duty 90V DC Motor 36W, 2000RPM

Your Price: $44.95
In Stock

Product ID # 1803
Part Number:
MT-5400



Quantity Discounts

QuantityAmount
5 to 20$43.60
21 to 50$42.70
51 to 100$41.80
101 or more$40.46
  • High Torgue , Heavy Duty 90V DC Motor for Hobby Projects
  • Perfect  for Hi-Power RC Boats, RC cars, School Projects, Robots, and other hobby projects.
  • 2000 Max. RPM
  • Ball Bearing quiet operation
  • Motors are Tested before Shipping
  • Please order  speed controller at the related product below
  • Operating Temperature:   -10'C (14F) Min, 60'C (140F) Max
  • Elevation: No impact
  • Humidity: 75%

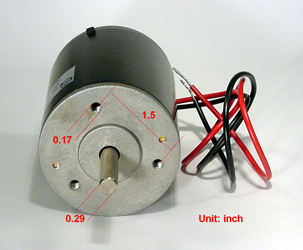

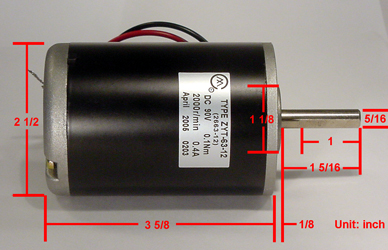

Horse Power Cont.  36 W Length of Motor (excluding spindle) 90 mm
Torque  18 Lb-Incn ( 0.22 NM ) Diameter of Motor 62.5 mm
Voltage & Current 90V DC & 0.4A Length of Spindle 32.5 mm
RPM 2000 Diameter of Spindle (with a flat ) 7.5 mm
Reversibility Reversible Weight per motor 1.9LB


Parameters:  Speed vs Torque and Power

 Motor Parameters  1  2  3  4  5  6  7  8  9
 Speed (RPM)  2604  2417  2225  2137  2040  1940  1841  1746  1634
 Troque ( N-M)  0.02  0.05  0.1  0.12  0.14  0.16  0.18  0.2  0.22
 Current (AmP)  0.113  0.244 0.367  0.428 0.401  0.509  0.528   0.648  0.748
 Input Power ( Watt)  16.17 21.96   33.03 38.34 44.19  50.31   56.34  61.56 67.33
 Output Power (watt)  6.45 15.19 23.30  26.85  29.91  32.50  34.70  36.57  37.64
 Efficiency ( 5)  53.62 60.15  70.54  70.04 67.68  64.60  61.59   59.40  55.91
