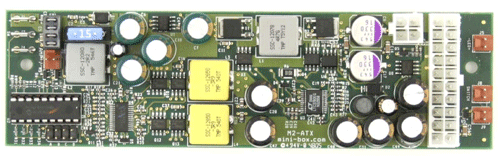

DC-DC Regulator Module: Input 6-24V / Output 3-5-12V (90W) with Connectors /Cable

Your Price: $76.95
Out of stock

Product ID # 2636

Part Number:
DC-DC-M1AXT



This is the state of art DC-DC power regulator with wide range DC input and multi DC out put It features with

  • 160 watts output at 3V, 5V and 12V DC
  • ATX, 6-24V wide input range
  • Intelligent shutdown controller
  • ON/OFF motherboard control
  • Survives vehicle engine cranks
  • Battery deep discharge prevention
  • High efficiency, 160 watts output
  • Anti-Thump" Amplifier remote control
  • VIA, P4 and AMD CPU support
  • Connectors included
  • Ideal car Power supply for operating P4, P4-M, Celeron, AMD systems
  • If you want to use as a regular regulator (not connect to PC), then you need to short J7 pin 14 to pin 15 to produce output

Smart Tip:

  • Connect this smart DC-DC module to Polymer Li-ion pack ( 14.8V - 22.2V), then you can get regulated DC power at 3.3V, 5.0V and 12V DC to run all types of DC device


Specifications:



  • Input:                                           Min. 6V  - Max. 24VDC Clamping will occur at 25-27V
  • Input Current:                               15A Max. protected by fuse
  • Output Voltage:                            3.3V (8A), 5.0V (8A)  12V 8A
  • Out Put Power:                             90 Watts Max.
  • Battery discharging Protection:  Shutdown at 11.2V
  • Conversion efficiency:                  > 94%  ( 9-16V input)
  • PCB Size:                                     195 mm x 45 mm
  • weight:                                          7 oz (200 g)  (with connector)
  • Please download operation manual
