DC-DC Regulator Module : Input 13-17 VDC / Output 12VDC (4 Amp rate with removable heat sink)

Your Price: $14.95
In Stock

Product ID # 2494
Part Number:
AD-SDR-48W



This DC-DC regulator is designed for converting any 13-17V DC to 12V DC output  (not intend to be use as a step-up regulator)
The regulator can be used for any type of battery.

Specifications:

  • Input:  DC 13-17V
    • Input Terminal 1 = 3.0" long 18AWG open wire end
      • Red = Positive
      • Black = Negative
    • Input Terminal 2 = 4.5" long 18AWG two pin universal male plug
      • Large pin male = Positive
      • Small pin male = Negative
    • Tip: If the connector won't match, you may cut off  two pin universal male plug then DIY with our connector
    • Note: Must use either "Input Terminal 1" or "Input Terminal 2" for input terminal. Please don't combine "Input Terminal 1" together with :Input Terminal 2"
  • Output: 12V DC +/- 2%
  • Output Terminal 1 = 6" on  16AWG wire open wire end
    • Red = Positive
    • Black = Negative
  • Need connector for DIY? Please click here to order separately
  • Max current : 4A   (50W)
  • Conversion efficiency:  > 75%
  • Dimension included aluminum heat sink(LxWxH):74mm(2.9") x  30mm(1.2") x 32mm(1.3")
    • Dimension excluded aluminum heat sink (LxWxH): 71mm(2.8") x 30mm(1.2") x 30mm(1.2")
  • Weight inlcudedaluminum heat sink:2.9 Oz (82 grams)
    • Weight excluded aluminum heat sink :2.7 oz (77 grams)

Note:

    • Want to remove aluminum heat sink? Please click here to order a screw driver separately.
      • 1 pc aluminum heat sink
      • 1 pcs paper insulator (located on the button)
      • 2 pcs M 3.4mm screw
    • Please do not use with device which drain current more than 4A
    • Wrong polarity/ Wrong terminal connection will damage the regulator

  Input Terminal 1 = 3.0" long 18AWG open wire end,  Input terminal 2: two pin universal male plug-, Output terminal 1: 18AWG wire without connector

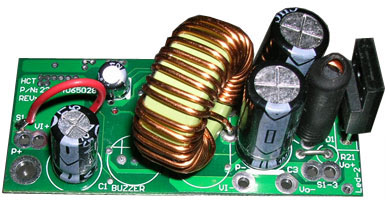

   A DC - DC regulator boaed after removed all part

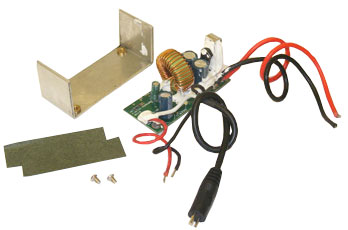

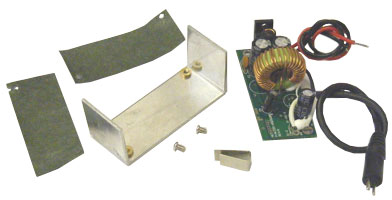

  All part shown after removed by excluded Philip Screw Driver (M3.4mm)
