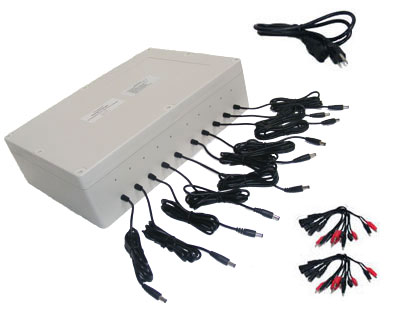

Custom Smart Gang Charger: 10/18 Channels 3.7V (0.5A) Li-ion/Polymer Battery Charger

Your Price: $256.67
In Stock

Product ID # 6820
Part Number:
CH-CU-J721

lead time 2 weeks

Personalizations

* denotes required field

10 or 18 Channels Charger*


Features

  • Custom 3.7V 0.5A Gang Charger that can charge 10/18 x 3.7V Li-Ion batteries at the same time!
  • This charger consist of 10 or 18 x 3.7V 0.5A chargers
  • Reside in 1 x Plastic Enclosure (PN: BOX-120)
  • 1 x Detachable AC input power cord with on /off switch (110-240Vac)
  • 10 or 18 x individual charging LED (Red - charging) (Green - full)
    • output: max 3.0' long 5.5x2.1mm Male plug
  • Size (LxWxH): 378mm(14.9") x 258mm(10.2") x 120mm(4.7")
  • Weight: 3.0 lbs 3.8Oz (1470 grams)
  • Note: not UL or CE listed

Below is the detail specification for individual charger:

Product A CE listed smart battery charger designed to charge 3.7V Li-Ion/Polymer battery with capacity  >= 700mAh.
Input
  • Voltage: 100 -240VAC
  • AC power plug type: USA
  • Max.  input power:15W
  • Rating frequency:50/60Hz
Output Connector Type
Dimension(LxWxH) 225mm(8.9") x 148mm(5.8") x 58mm(2.3")
Weight 2.0lbs 7.0Oz (1100grams)
Protection Output shorted and overload protection
LED Indicator
  • Red - Charging
  • Green - Fully charged
Efficiency >60 %
Operate Temperature -10oC(14F) ~ +40oC(104F)
Humidity <+90
Charge time = (Ah rate of the pack x 1.5) / 0.5A charge current

Warnings

  • Check battery polarity before connecting to charger. We are NOT liable for any damage due to wrong polarity!
  • This is for 3.7V Li-Ion/Polymer battery with capacity  >700mAh
  • Indoor use only! Please avoid water
  • High-voltage inside charger, Do NOT open the cover as it will void the warranty
  • One year warranty
