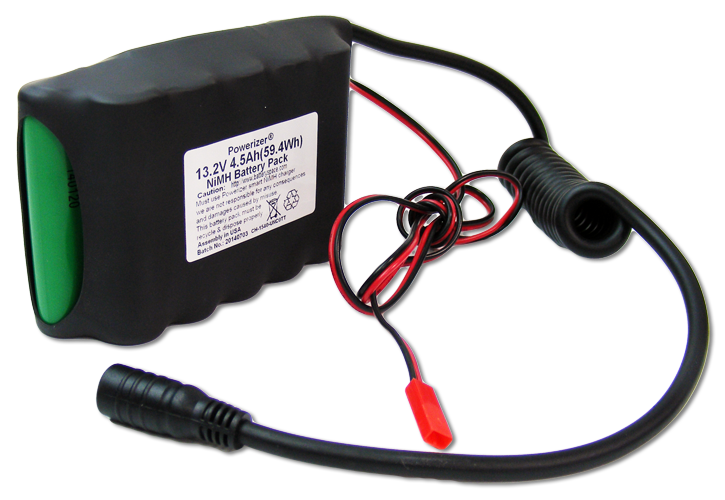

Custom NiMH Battery Pack: 13.2V, 4500mAh (4/3AF cell)

Your Price: From $58.95 to $78.95
Lead Time: 5 Business Days!

Product Options

Combo Option:


 Packing
  • 13.2V battery pack made of high quality NiMH 11x 4/3 AF  cells of  4500 mAh capacity.
  • Wrapped by heavy duty fire retardant heat shrink tube
  • Combo Option:
  • Option 1: Battery Pack without charger
  • Option 2: Battery Pack with charger
    • one nylon bag is included for carrying the battery pack in bel
    • one 1.8A 9.6-18V Universal Smart charger  is included .  The charging time is about 3 hrs set at 1.8A current.
    • one connector adaptor  is included for connecting charger to battery pack.
      • You need to attach temperature sensor from charger to battery pack during charging to double prevent battery from overcharged
 Voltage      13.2 V ( working )    15.5 V ( peak)
 Capacity      4500 mAh   or  59.4 wh
 Charging Rate      Standard 1.8 A     Max. 2.2 A
 Discharging Rate
  • Standard rate: 2.2 Amp  ( Recommended and warranted)
  • Highest rate for continuous running:  4.5 Amp
  • Max. current 5 Amp ( limited by thermostat )
 Protection
  • 65'C thermostat built in the pack to protect battery from overcharged and over-discharged
  • 7 amp polyswitch installed to protect short circuit.
  • 10K thermistor built in as temperature senor to avoid battery overcharged beyond 70oC
 Pre-wired
 Battery Dimension (LxWxH)        4.3"(110mm) x 2.8"(70mm) x 1.4"(35mm)
 Battery Net Weight        1.75 lb (794g)
 Applications
  • This battery pack fits with Trail-Tech HID light system
    • 1.9 hrs burn-time for 30W Trail-Tech HID light or Halogen light
    • For other brand, you may need to change connector on your light.
 Related Products
 Warnings
  • Temperature sensor (BEC red connector) shall be connected to charger before charging battery pack. This is double protection of battery from overcharging.
  • Please don't discharge the battery pack below 10V  ( 1.0 V / cell).  Deep discharging may damage NiMH battery pack.
  • Charge battery immediatelyevery time after it is discharged. Never storage the battery pack below 13.0V.
  • Please read more safety warning  at the link before buying
 How to Charge Battery
Notes Things to know about Nimh Batteries

Related Products

Option 1:14AWG with Tamiya Male Plug
Custom NiMH Battery Pack: 13.2V 10Ah (132wh Hump)
Your Price: From $137.95 to $169.95

Product Reviews

(1 Rating, 1 Review) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
Great value!
charltang (Unknown) 11/9/2006 10:59 PM
I'm a happy camper. The new battery pack runs my Niterider Classic longer than they've ever ran on the stock batteries. Total cost, not including tax and shipping, was about $75 for the battery, charger and new connector plus $15 for the Niterider battery pouch. That beats $180 for just the battery from Niterider! And now I have an ultra fast smart charger to boot.
---------------------------
