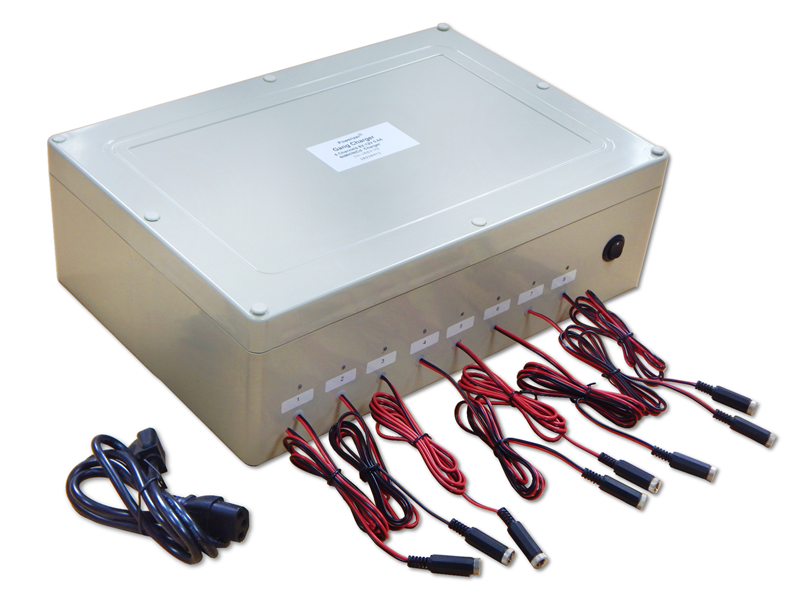

Custom Smart Gang Charger: 8 Channels 6V-12V (0.6A) NiMH/ NiCd Battery Charger

Your Price: $247.00
lead time 2 weeks

Product Options

Connector:


Features

Feature
  • Custom  8 Channels Gang Charger (0.6A) that can charge 8 x 6.0-12.0V NiMh/NiCD battery pack at the same time!
  • This gang charger consist of 8 x CH-UN123 chargers
  • Reside in this Plastic Enclosure (PN: BOX-120)
  • 1 x Detachable AC input power cord with on /off switch (110-240Vac)
  • 8 x individual charging LED (Red - charging) (Green - full)
Dimension(LxWxH) 375mm(14.8") x 264mm(10.4") x 180mm (7.1")
Weight 4.0lbs 2.4 Oz (1880 grams)

Specification

  • This Universal Smart Charger is good for any NiMH /NiCd battery packs between 6.0V to 12V
  • 100-240VAC input for worldwide voltage support
  • 2.0A in-line fuse installed
  • Charging current is 600 mA
  • Designed for slow charging 6.0V-12V  NiMH and NiCd Battery Pack. Built in IC will recognize battery pack voltage ( from 6.0V- 12V ) and automatically apply appropriate charging voltage without setting.
  • Ideal for any NiMh/NiCd battery pack with capacity < 4000 mAh
  • Using Pulse and Negative pulse technology ( 10% negative pulse ) for charging to protect battery from overheating and polarized during charging. Significantly increase battery pack's cycle life
  • Automatically detect battery pack's voltage, Red LED on during charging.
  • Automatically cut-off by negative delta V when battery pack get fully charged.
  • Protection fuse for over current, short circuit & reverse polarity protection.
  • Charging time from approx. 30 mins to 100 mins depending on the capacity of battery.
    • For 3000 mAh battery pack, charging time is about 5 hours
    • for 2000 mAh battery pack , charging time is 3.5hours.
    • For 600mAh battery pack , charging timer is about 1.2 hrs

Output Connector Options

Operation Instruction

  • When the unit connect the AC source, the red LED and green LED flash for two times, then all off.
  • After it connect the correct battery pack, the red LED will be on showing it is charging.
  • After battery is fully charged, green LED will be on.

Warnings

  • Please don't use the charger for low capacity battery pack (<600mah).
  • We are not responsible for any damage caused by charging other brand battery using this charger.
  • This charger is protected by fuse, our warranty does not cover the fuse exchanges.
  • Please plug in AC power first, then connect the battery to the charger, otherwise, there is no output from the charger.
