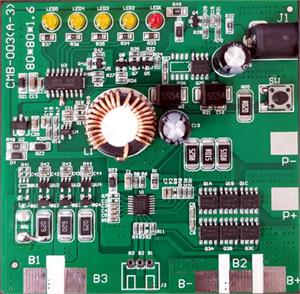

CMB for 11.1V Li-Ion Battery Pack (10A limit, RoHS Compliant ) with DC charging, Fuel Gauge and full protection
|
|
In Stock
Product ID # 4889
Part Number: CMB-S3A3
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $42.63 |
| 21 to 50 | $41.75 |
| 51 to 100 | $40.87 |
| 101 or more | $39.56 |
|
CMB (Charging Manage Board) for 11.1V Li-Ion (10.0A limited) Battery Pack
Features:
-
Manufacture part# CMB-S3A3
-
The board is capable of being charged by 14-18 DC adapter and discharged at the same time
-
Charging terminal will cut off @ 12.6V when fully charged. If the discharge terminal was being continuously discharged (at less than or equal to adapter's output current) until 9.0 +/- 0.25V, the charging terminal will reset and start charging automatically. (Please wait 10 min for LED 1 Flashing)
-
If the discharge current exceeds the charging current while charging, the battery will continue to discharge until 7.95 +/ 0.25V cut - off voltage and the charge terminal will NOT be reset to start auto charge (must disconnect the charge terminal or ac power to adapter to start charging)!
-
3 cells Li-Ion battery pack ( Li-Co or LiMnNiO ) protection with 2.9A Max charging rate & 10.0A Max discharging rate
-
Input power: DC 14V -18V ( > 35W) from charging terminal (Input Terminal)
-
Output Terminal: P+, P- Soldering Spot
-
Input Terminal : 5.5mm x 2.1mm female barrel socket
-
Max. Charging rate: 2.9A
-
Max. Discharging rate: 10.0A
-
Fuel Gauge: 5 LEDs built in the board to show battery charging/discharging status
-
Type: Voltage based
-
LED 1 indicate battery charging status
-
LED 2 - LED5 indicate battery discharging status
-
LED 2-LED5 status
-
LED 2 = Red = 25%
-
LED 2 & LED 3 = Red = 50%
-
LED 2 & LED 3 & LED 4 = Red = 75%
-
LED 2 & LED 3 & LED 4 % LED 5 = Red = 100%
-
Included Press Fuel gauge switch to check the status of charge/discharge
-
Max Dimension: 82mm(3.2") x 82mm(3.2") x 20mm(0.8")
-
Weight: 1.8Oz (50.0 grams)
-
RoHS Compliant
-
Operate Temperature : -40'C (-40F) ~ 85'C (185F)
-
Electric Performance:
-
Discharging protection
-
Over-charge protection voltage for single cell: 4.35V/cell
-
Over-discharge protection voltage for single cell: 2.40V/cell
-
Maximum continuous discharge current: 10.0A
-
Short circuit protection
-
|

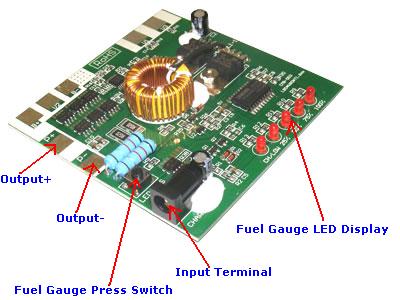

5.5mm x 2.1mm Input terminal with Fuel gauge
& Fuel gauge press switch
|
|
