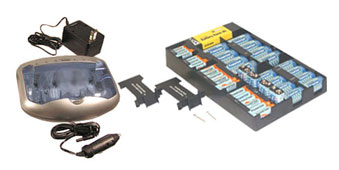

CH-V2299 Computer Controlled Charger + 40 pcs NiMH Rechargeable Batteries + Rack 40 Battery Organizer / Tester --- Must have for Lab / Home

About 40 NIMH Rechargeable Batteries

• Various sizes of high quality Powerizer NiMH batteries are included for your every application:  8 pcs AAA(1000 mAh) , 12 pcs AA (2600 mAh) , 4 pcs 9V (200 mAh ) , 8pcs C (5000 mAh) , and 8 pcs D (10000 mAh).  Total 40 cells included.
• The batteries can be rechargeable up to 1000 times and save you big money
• Must have for Electronic Lab , and family that uses a lot of battery for toy

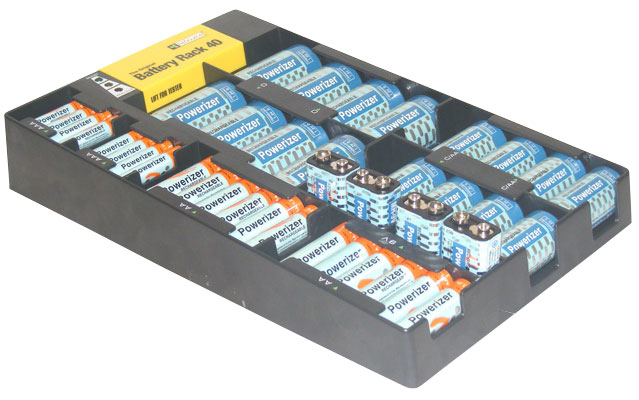

About 1 pc Battery Rack 40 - Battery Organizer with Battery Tester + AA Battery adaptors --- hold up to 46 cells

• Those batteries cluttering up drawers in your home-are they good, dead, or what? This battery rack lets you store and organize all unused household batteries in one handy place, and even includes a built-in battery tester so you know which ones you shouldn't even bother storing! Stores up to 46 batteries (AA, AAA, C, D, 9v Block Sizes).
• Size: 12"  (305mm) x 7.125" (181mm) x 2.0" (51mm)
• Weight is: 0.8lb (363g)
•  Please click here to download user manual
•  Please click here to download instruction for AA Battery Adaptor
• Housing fits drawer, cupboard, or can be wall-mounted (screws included).  A Battery tester is built in Battery Rack
• A battery rack which can hold up to 46 cells, e,g
  • 8 pcs - AAA batteries
  • 12 pcs  OR 26- AA batteries
    • Hold up more 14 cells because the 2 pcs AA adaptor located on  C size battery section (7 cells per each section)
  • 4 pcs - 9V block batteries
  • 8 pcs OR 0 pc - C batteries
    • Hold down to 0 cell because C size battery section was located by 2pcs AA adaptor
  • 8 pcs - D batteries

 About the V2299 Smart Charger:

• Easy to use. One for all size rechargeable NiMH / NiCd batteries
• Powered by an external AC adapter (In-put: 110V output: 12VDC 1000mA).
• Intelligent microprocessor controlled to cut off power automatically once battery get fully charged.
• Battery life well protected by negative delta V (- delta V) detection, and time protection of AAA, AA, C & D size batteries.
• Use constant current pulse charging system
• Recharges NiMH / NiCd batteries at a time for 2 pcs or 4 pcs AA / AAA /C/D and 1-2 pcs of 9V cells
• Automatic charge/discharge current selection for the different size of batteries.
• LED display for rapid charge / trickle charge / bad cell detection for AA, AAA, C & D size
batteries:
• Red LED --- Rapid charge
• Green LED --- Cell are ready for use / trickle charge
• Flashing RED LED --- cells are not suitable for charging
• For 9V batteries:  RED LED --- charging
• Packing: Each in a gift box with Powerizer logo
• Measurements: 5.0"W x 6.7"L x 2.5"H.
• Weight: 2.0 lbs
• CE & UL approved.
• ROHS Compliant
•  Please click here to download the instruction manual of the charger

   Charging time: One times fully charge the following of  battery.

  • AAA size:   capacity: 600-1000mAh; Charging time:   1.5 - 3  hrs.; Charged by constant current at 400mA.
  • AA size:
  capacity: 800 -2600mAh; Charging time:  1- 3  hrs.  Charged by constant current at 850mA
  • C size: capacity: 1200 -5500mAh; Charging time: 2 - 7 hrs. Charged by constant current at 850mA.
  • D size:
  capacity: 1.2   -10 Ah; Charging time: 2-   14hrs. Charge by constant current at 850mA.
  • 9V block size:  capacity: 100mAh-250mAh; Charging time: 9-18 hrs. Charged by constant current at 16mA.
• FAQ:  What is different between V2299 smart charger  and B1HU  ?
  • V2299 and B1HU  both are advanced Smart Chargers, but V2299 has lower cost, please see below to see different

• Smart Charger  Differences	V2299	B1HU
  Can it charger single cell	No	Yes
  Does it has discharging function?	No	Yes
  Which one is charging faster?	same	same
  Which one has lower cost ?	Lower	higher

  Suggestion:  If you don't need to charge single (1) cell and/or discharge battery ( in most of case for NiMH ),  you can use V2299 instead of B1HU to save some money

Testing batteries by Built in Tester in Rack

• Batteries maybe tested with the meter/tester in the rack, or it may be removed from the rack for convenience. To test AAA, AA, C, D Size batteries, lift the battery compartment cover on the top of the Battery Rack.
• Slide the negative terminal and hold it there, then place a battery in the compartment according to the polarity symbols(+ and -)marked inside the compartment, then slowly release the bar.
• If only the RED indicator light is lit, the battery is weak and needs to be replaced or recharged. If RED and YELLOW indicator lights are lit, the battery's power is fair. If RED, YELLOW, and GREEN indicator lights are lit, the battery's power is good.
• To test 9V batteries, place the 9-volt battery terminal on the contact inside the battery compartment with the positive(+) terminal on the contact marked + and the negative(-) terminal on the contact marked 1. Press the battery down to get good contact.
• The indicators are the same as for other batteries.
• Three LR44 button cell batteries are included. for Battery tester. To replacing internal batteries in tester
  • When the power indicators light dimly or not at all during battery testing, follow these steps to replace the rack's internal batteries with three new 357A( or LR44) button cell batteries.
  • Turn the Battery Rack over and use a screwdriver to remove the screw from the battery compartment cover, then remove the cover.
  • Use the flathead screwdriver to gently pry out the three button cell batteries.
  • Install three fresh batteries according to the polarity symbols (+ and -) marked above the compartment.
