Features:

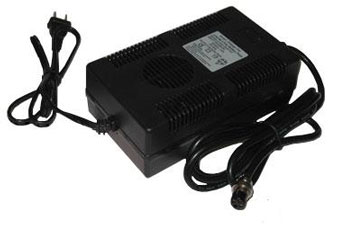

• Intelligent charger (manufacture part# CH-Z-USC-14.8V-6.0) designed for any 14.8V (4 cells) Li-Ion Battery pack including Polymer Li-Ion and Cylindrical Li-Ion with capacity > 6000mAh
• Worldwide input AC power from 100V --- 240VAC 50-60Hz PF>90%.
• Built in cooling fan to ensure charger long service life
• Safety protection
  • Over Voltage protection
  • Short Circuit protection
  • Output reverse protection (included10A replacement fuse)
• Charging Current: 6000 mA (6.0 A)
• Output voltage: 16.8VDC
• Charging time:
  • Charging time = (1.5 x Ah rate of the pack) / 6.0A charge current.
• Built in IC to cut off power automatically when battery is fully charge.
• LED indicator:
  • Red LED = In Charging
  • Green LED = Battery full
• Note: You must connect charger to AC power before connect to battery pack. Otherwise, the charger will NOT charge the pack and you will not get a RED LED indicate charging.
• Red LED show Battery charging and Green LED shows full.
• Charging terminal : 4 pin female cannon plug
  • Charging terminal: Pin #1,2 = negative, Pin#3,4 = positive
  • Optional for 4 Pin male Cannon plug, Please click here to buy seperately
  • Warning: Wrong polarity will damage the charger. Batteryspace is not responsible for the damage or losses caused by misusing
• Need to charge the pack with Standard Male Tamiya charging terminal? Please click here to order the connector adaptor seperately.
• Need to have to Connector Adaptor: From 4 Pin male Cannon plug to Clips ? Please click here to order seperately.
• Dimension (LxWxH): 182mm(7.2") x 104mm(4.1") x 68mm(2.7")
• Weight: 1.7lb (771g)

Excluded the connector adaptor for charge the pack with Standard Male Tamiya charging terminal

Excluded the Connector Adaptor: From 4 Pin male Cannon plug to Clips

Pin assignment for 14.8V 6.0A Li-Ion smart charger charging terminal

How to connect with the excluded 4 Pin male Cannon plug

Warning:

• Only charge Li-Ion battery pack with capacity > 6000 mAh. Don't use the charger for lower capacity Li-Ion battery pack.
• Only charge Li-Ion battery pack with voltage 14.8V (4 cell pack). Don't use the charger for Lower voltage battery pack which may cause battery to explode
• We are not responsible for any damage caused by misuse.
• Indoor use only
• Don't remove the case to prevent from electric shock
• Unplug the charge from AC outlet after use.
