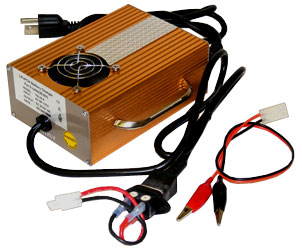

Smart Charger (6 A) for 25.9V ( 7 cells ) Li-Ion Battery Pack (110V only)

Smart Charger (6 A) for 25.9V ( 7 cells ) Li-Ion Battery Pack (110V only, Standard Female Tamiya plug)


The Smart Charger is designed for charging 6Ah - 40Ah 25.9V ( 7 cells ) Li-Ion battery pack. It features with three stages charging (Constant Current,Constant Voltage & Trickle charge mode) and promise 25.6V lead acid battery to get full without overcharged.

  • INPUT
    • AC input voltage 90 to 130 VAC , single phase
    • Input frequency 47 to 63 Hz
    • Efficiency 72%(min)at rating power,115Vac 60Hz
  • OUTPUT: 200 AWG wire with one set of clips
    • CCCV (Constant Current Constant Voltage) charging mode
    • Cut-off voltage: 29.6VDC
    • 6 A current Max.

    • Charge terminal: 14AWG wire Standard female Tamiya plug.

    • Included one pcs connector adaptor, convert from Standard Male Tamiya plug to alligator Clip

      • Must plug Standard Male Tamiya end to the Standard Female Tamiya plug of the charger with correct polarity.
      • Must plug Clip end to the connector of the battery pack with correct polarity
        • Red Clip = Positives
        • Black Clip = Negative
      • Warning: Wrong polarity will damage the charger, and Batteryspace are not responsible for the damage or losses caused by misusin
  • CHARGE
    • The Battery range is between 6AH to 40AH
    • Reverse Polarity Protection
    • Short Circuit Protection
    • No trigger voltage requirement
  • Included 1 pcs replacement 5A 250V fuse
  • Built in cooling fan to ensure charger long service life
  • Dimension (LxWxH): 174mm(6.8") x 138mm(5.4") x 67mm(2.6")
  • Weight: 3.0lb (1361 grams)
  • Please click here to download user manual

Charge terminal: 14AWG wire Standard female Tamiya plug.

Fuse replacement socket, POWER/ CHARGE LED indicator

Optional Connector Adaptor; from Standard Male Tamiya connector to 5.5 mm x 2.1 mm Barrel plug

How to connect with the included connector adaptor, Standard male plug to alligator Clip

Warning:

  • Charge Li-Ion rechargeable pack for 25.9V only (capacity 6Ah - 40Ah)
  • Do not detach Standard female Tamiya plug from charger
  • Do not expose the product to rain or humidity to prevent from electric shock
  • It is normal if the product gets slightly hot in using
  • Keep the product out of the reach of children
  • A quality and correct polyswitch must be installed to battery pack to avoid accident.
  • Do not open the charger and touch any part of the product to prevent from electric shock
  • We are not responsible for any damage caused by misuse.

Price: $79.95
