The Smart Charger is designed for charging 20Ah - 100Ah 25.9V ( 7 cells ) Li-Ion battery pack. It features with three stages charging (Constant Current,Constant Voltage & Trickle charge mode) and promise 25.9V lead acid battery to get full without overcharged.

• INPUT

  • AC input voltage 90 to 130 VAC , single phase

  • Input frequency 47 to 63 Hz

  • Efficiency 72%(min)at rating power,115Vac 60Hz

• OUTPUT:

  • Charge terminal: 4' long 8AWG wire 1.9" x 1.5" x 0.6" Standard Andersen connector

    • Anderson plug dimension (LxWxH): 1.9"(48.0mm) x 1.5"(38.0mm) x 0.6" (15.0mm)

    • Included 1 pcs 1.9" x 1.5" x 0.6" Standard Anderson connector without wire for DIY use.

      • Tip: In order to match up the charger's connector,You may connect the battery pack charge terminal with Included 1 pcs 1.9" x 1.5" x 0.6" Standard Anderson connector.

      • Make sure the charge DIY wire will be acceptable for 15A Max charge current. Please click here to see American Wire Gauge table and AWG Electrical Current Load Limits

      • Warning: Wrong polarity will damage the charger, and Batteryspace are not responsible for the damage or losses caused by misusing

    • Note: Anderson connector has no difference in male and female, which can mate each other

  • CCCV (Constant Current Constant Voltage) charging mode

  • Cut-off voltage: 29.6VDC

  • 15 A current Max.

• CHARGE

  • The Battery range is between 20AH to 40AH

  • Reverse Polarity Protection

  • Short Circuit Protection

  • No trigger voltage requirement

• Connector:
  • Female Andersen plug is installed in charging terminal.
  • Male plug (no cable ) is included for connecting to battery pack
• Please click here to download user manual

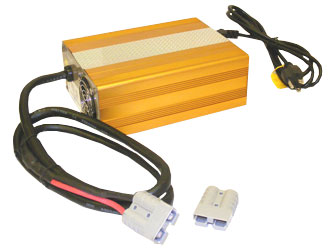

Charge terminal: 4' long 8AWG wire 1.9" x 1.5" x 0.6" Standard Anderson connector

Polarity assignment for charge terminal

Included 1 pcs 1.9" x 1.5" x 0.6" Standard Anderson connector for DIY use

Polarity assignment & wire soldering location for Included Standard Anderson
