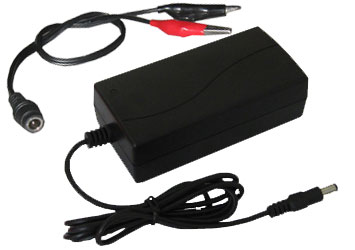

Smart Charger (1.5A) for 12.8 V LiFePO4 battery Pack (4 cells,15.2V cut-off) with 5.5mm x2.1mm Male Barrel plug
|
Feature
-
100V-240V AC 50/60hz input for worldwide power support
-
Model: H01280015-XX-D1
-
Output:: DC 14.6V 1.5A CC/CV
-
Constant charging current for faster charging, save much more time
-
Stabilized output, low ripple
-
It can charge any 12V LiFePO4 rechargeable battery >= 1200mAh
-
Safety Protection:
- Over voltage protection
- Short circuit protection
- Output reverse input protection
- Connector Type: 4' 8" long 5.5mm x 2.1mm male barrel connector
- Inside barrel = positive (+)
-
- Outside barrel = negative (-)
- Included one Connector Adaptor: from 5.5mm x 2.1mm female Barrel plug to Clips
Need to charge two pin female universal plug's pack? Please click here to order the connect adaptor
separately.
Need to charge Standard Male Tamiya plug's pack? Please click here to order the connect adaptor
separately.
The charger will cut off automatically if battery is
- Red LED = In Charging Red LED
- Green LED = Battery Full
- Detachable AC power cord
Specification
-
Input: AC 100-240V 50-60Hz
-
Charging current: 1500mA (1.5A)
-
Dimension (LxWxH): 4.6''(118mm) x 2.4''(60mm) x 1.5"(37mm)
Warning
-
Charge 12V LiFePO4 rechargeable battery only
-
Do not expose the product to rain or humidity to prevent from electric shock
-
It is normal if the product gets slightly hot in using
-
Keep the product out of the reach of children
-
a quality and correct polyswitch must be installed to battery pack to avoid accident.
-
Do not open the charger and touch any part of the product to prevent from electric shock
|
Price: $29.99
