Smart Charger (0.5A) for 7.4V Li-ion/Polymer Rechargeable Battery Pack-- UL listed

Smart Charger (0.5A) for 7.4V Li-ion/Polymer Rechargeable Battery Pack-- UL listed

Smart Charger (0.5A) for 7.4V Li-ion/Polymer Rechargeable Battery Pack-- UL listed

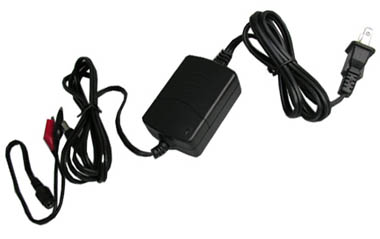

3P10-L0508 is an UL listed smart battery charger designed to charge 7.4V Li-Ion/Polymer battery with capacity >= 700mAh. It use delta-V technology to monitor and control the charging process.

Specification
- Input
  - Voltage: 100 -240VAC
  - AC power plug type: USA
    - Need additional AC-AC power plug adaptor for international use? Please click here to order seperately
  - Current:0.1VAC
  - Max.input power:6W
  - Rating frequency:50/60Hz
- Output
  - Volt: 8.4VDC 0.5A
  - Cut-off: automatically cut-off power when battery pack is full at 8.4V
  - Connector Type: 4' 11" long 5.5 x 2.1 x 12mm male barrel connector
    - Inside barrel = positive (+)
    - Outside barrel = negative (-)
    - Included one Connector Adaptor: from 5.5mm x 2.1mm female Barrel plug to Clips
    - Need to charge two pin female universal plug's pack? Please click here to order the connect adaptor separately.
    - Need to charge Standard Male Tamiya plug's pack? Please click here to order the connect adaptor separately.
- Dimension (LxWxH): 88mm(3.5") x 52mm(2.0") x 30mm(1.2")
- Weight: 4.9Oz (139grams)
- Battery: 7.4V Li-Ion/Polymer Battery with capacity >=700mAh
- Protection: Output shorted and overload protection
- LED Indicator:
  - Red - Charging
  - Green - Fully charged
- Efficiency: >60 %
- Operate Temperature: -10^oC(14^oF)~ +40^oC(104^oF)
- Humidity: <+90
- Charge time = (Ah rate of the pack x 1.5) / 0.5A charge current
  - 1000 mAh = 1 Ah
Caution
- Check battery polarity before connecting to charger. We are NOT liable for any damage due to wrong polarity!
- This is for 7.4V Li-Ion/Polymer battery with capacity >700mAh
- Indoor use only! Please avoid contact with water
- High-voltage inside charger, Do NOT open the cover as it will void the warranty
- One year warranty

Convert to two pin male universal plug is excluded.

Convert to Standard Female Tamiya plug is excluded .

One connector Adaptor is included.

Price: $21.95
