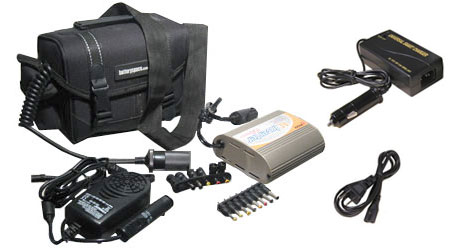

• One Polymer Li-Ion Battery Bank: 11.1V 20Ah ( 222 Wh) with Car Lighter Socket (20 A rate) , which made by 6 pcs 3.7V10Ah Polymer Li-Ion Cell (3S2P)
  • 4' long Cigarette lighter socket with coil cord.
  • Two PCM (10A limited each) are installed
  • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
  • Dimension: 6.5"(165mm) L x 2.6"(65mm) W x 1.8 "( 46mm) H
  • Weight: 2.5 Lb
• One 1.5A Smart Li-Ion battery charger with car lighter plug (male) 100-240V AC ) is included for worldwide use. (Need AC plug adaptor ? Please buy seperately here)
• One DC-AC inverter (150W) with car plug is included , so the battery bank can be recharged/charged from car.
• One DC-DC regulator (120W) is included to control output DC voltage at 15V, 16V, 18V , 19V, 20V and 24V separately.
• One 8 Detachable DC plug is included to fit most of laptop computer. (One dell connector is optional)
• One Quality Nylon bag ( 5.5" x 4.5" x 7.5" ) easy to carry and store.
• Perfect for mobile office, biking, hunting, camping and hiking.
• Can run a laptop computer for more than 10 hours per charge
• Can run 50 W Halogen light up to 4.4 hours per charge
• Please click here to learn how to choose the power invertors

About the Polymer Li-Ion battery pack: 11.1V 20 Ah Polymer Li-Ion technology made by 6 pcs 3.7V10Ah Polymer Li-Ion Cell ( 3S2P) Voltage: 11.1 (working) 12.6V ( peak) Capacity: 20 Ah Energy: 222 Wh Max. Discharge rate: 20 Amps Two PCBs installed with the battery pack, which protect the battery from Overcharge (>12.6V), Over-discharge (< 9 V), Over-drain ( >20 Amp), Short circuit and Wrong polarity Light-weight : only 2.5 Lb Only 20% weight of Lead acid battery and 35% of NiMH battery with the same energy. Dimension: 6.5"(165mm) L x 2.6"(65mm) W x 1.8 "( 46mm) H About DC-DC Regulator with Switch ( please click here for detailed specs) One 120W DC-DC regulator is included to convert the battery pack ( 14.8V ) voltage to 15V, 16V, 18V., 19V, 20V, 22V and 24V separately via a switch, as shown in the picture at right The voltage range from 15V- 24V DC will cover most Laptop computers available You can plug the DC-DC regulator into the car lighter and run the laptop computer directly without the battery 6 detachable plugs are included, which can connect via cable from the battery pack or regulator to the laptop computer or other electronic devices such as PDA, CD Player and MP3. Dell plug is optional Please check the plug's diameter of your laptop computer before purchase	connect battery pack to regulator , which will convert output voltage from 15V - 24V
The connector must be plugged into the cord correctly in order to ensure the correct polarity. Most devices are designed to take the positive (+) in the middle and the negative (-) on the exterior of the plug. If unsure you can consult the user manual or look for a diagram on the original AC adapter.	If the Positive is in the center prong, please align the "+" on the connector to the "TIP" inscription on the cord. This will bring the +pole to the center. If the negative is needed in the center, please reverse the plug with the "-" inscription aligned to the "TIP".
