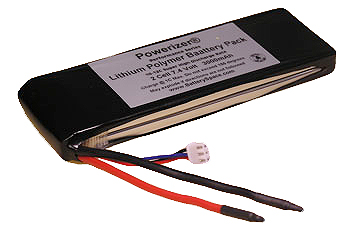

Polymer Li-Ion Pack: 7.4v 3000mAh 10-12C Discharge Rate (22.2Wh, w/o PCB) for Aircraft
| Packing |
|
| Voltage |
7.4 v (working) 8.4 V ( peak) 5.5 V ( cut-off) |
| Capacity |
3000 mAh ( 22.2 wh) |
| Datasheet |
 Please download specification 7.4v 3000mAh Polymer Li-ion pack(10-12c discharge rate. |
| Prewired |
- Charge terminal
- Discharge terminal
- 4" long 14AWG wire
- You may buy connector for DIY
|
| Max. Discharging Rate |
31 Amp. (Continuous 10 C rate), 62 Amp Max ( 20C Max for short time) |
| Dimensions |
14mm (0.5") x 46mm (1.8".) x 141mm (5.5") (Thickness x Width x Length) |
| Weight |
165g (5.7oz) |
| Smart Tips |
- In order to keep the 7.4v 3000 mAh polymer li-ion pack balance while charging, please use either of the chargers below
You may choose one of our PCBs to protect the polymer cell and its packs during charge
- The polymer battery is excellent for ebike , RC robot and other high drain DC device up to 40A
|
| Applications |
- Superior Battery Power and Battery Strength makes your RC car or Aircraft a true champion
- Can fit in most RC car stock tray ( 6x Sc size) and Replace 7.2V NiMH battery pack with 50% less weight
|
| Warning |
- Li-Ion Batteries may explode if charged or discharged improperly.
- The end user must have the technical knowledge necessary to charge and discharge Li-Ion batteries before making Li-Ion Battery Packs
- There is no PCB in discharging terminal. You must cut-off power before battery voltage dop to 2.5V /cell. Never discharge battery to zero voltage which will damage battery immedately.
- Always charge battery after use and for storage
- Please read more safety warning about Li-ion battery
|
|
Price: $38.95
