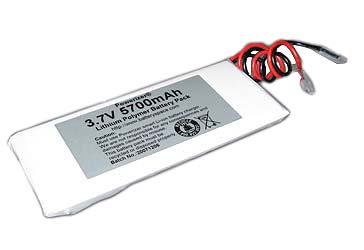

Polymer Li-Ion Module: 3.7 V 5700mAh ( 21Wh, 7A rate) - Prewired with PCB (PL-H7051119-WR)

Polymer Li-Ion Module: 3.7 V 5700mAh ( 21Wh, 7A rate) - Prewired with PCB (PL-H7051119-WR) (1.71)

Polymer Li-Ion Module: 3.7 V 5700mAh ( 21Wh, 7A rate) - Prewired with PCB (PL-H7051119-WR)

Packing

3.7V 5700mAh Li-Ion Battery pack is made of 3.7V 5700 mAh (PL-H7051119) with Built in Protection IC (PCB) to avoid battery over charge and over discharge

Optional for 1 pc A Fire Retardant Bag: 295mmx230mmx75mm --- Reduce the chance of damage if caught fire

This Fire Retardant Bag (Li-Ion Safer Bag) is intended to reduce the chance of damage in the event of catching fire.

Must locate & seal the battery pack in the bag while charging / leaving without any attention

Voltage Voltage: 3.6V (working) 4.2V ( peak) 2.5V(cut-off)

Capacity 5700 mAh, 5.7 Ah, 21 Wh

Protection

One PCB (8.5A) installed with the battery pack and protects the battery from

Over-charge (>4.2V)
Over-discharge ( <2.5 V)
Over-drain ( >8.5 Amp)
Short circuits

One 7Amp polyswitch is installed to limit max. discharging current at 7A and to protect wrong polarity

Pre-wired 7.5" long 18 AWG Prewired.( Black wire: negative, Red wire: Positive)

Max. Discharging Rate 7.0 Amp limited by polyswitch

Dimensions (LxWxH) 122mm(4.8") x 53 mm(2.0") x 14mm (0.6")

Weight 135 grams (4.8Oz)

Smart Tips

You may choose our 1.8A (UL listed) Smart Li-Ion battery charger to recharge this battery pack. The estimated charging time is 4.7 hours
You can use our 1.5A 3.7V LI-ion Charger to recharge the battery pack, charge time is about 5.7 hours
You may connect two battery modules in parallel and get a 3.7V 11400mAh Battery Pack

Applications

Perfect for memory buck-up, external battery bank for MP3
Building battery pack for higher voltage or higher capacity without extra PCB.
Perfect DIY for your own battery pack by using our connector at connector section.

Warning

Li-Ion battery may be exploded if miss-using. We are not responsible for any damages or losses caused by misuse.
Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident .
Please don't use the battery modules to make series connection or parallel connection with more than 2 packs, otherwise battery service life may be reduced.
For safety warning please see the link here

Price: $26.99
Buy Product Online | Visit Store Home
