| Packing |
|
| Voltage |
Voltage: 14.8V (working) 16.8V ( peak) 11.0V ( cut-off) |
| Capacity |
12.8 Ah or 189.44 wh |
| Protection |
- Two pcs PCB (IC) installed with the battery pack and protects the battery from
- Overcharge (>16.8V)
- Overdischarge ( <10.4V)
- Over drain ( >16 Amp)
- Short circuits
- Two pcs 7 Amp polyswitch installed in the pack ( each polyswicth in one 6.15 Ah module ) to limit max. discharging current to 14 Amp and to protect wrong polority
|
| Prewired |

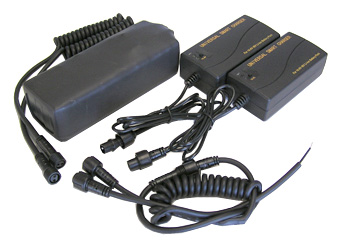

- Two terminals from the battery pack,. Each comes from 14.8V , 6.15 Ah module.
- Two 4" length 16 AWG coil cale with water-proof lockable plug ( two holes ) installed from each terminal.
- One 2 to 1 plug adaptor included for parallel connecting two module together to get 12.3Ah capacity
|
| Max. Discharging Rate |
- 14 Amp Max. limited by 2 polyswitchs ( 7A) in parallel connection
- 10 Amp Max limited by coil cable installed
- In order to draing > 10Amp device, you must change to 14 AWG wire the cable by DIY
|
| Dimensions |
7" L x 2.0" W x 2.50" H |
| Weight |
only 35 oz |
| Two Smart Chargers |
- Two 1.5A Smart Li-Ion battery chargers are included for faster and better charger ( click to see detailed specs)
- For charging: must regarge battery at each terminal by one charger, in this way, battery will get much better power balance than usingone charger.
- Charging time is about 5 hours
- For discharging: please connect 2 to 1 connector adaptor ( included ) to two terminals to get 12.3Ah capacity
|
| Tips |
- Connect the battery pack with 15-24V DC-DC converter, it can run any laptop computer with selectable output DC voltage from 15-24V. The power bank can run laptopn upto 7 hours.
- Connect the battery pack to DC-DC 12V regulators, it can run 12V portable devices
|
| Applications |
- HID Bikelighting or Dive light
- Halogen Lamp up to 35W ( burntime for 12V 35W Halogen lamp is 5.20 hours )
- Autonomous submarine
- RC Car and RC air plane where needs larger energy
- 12V portable devices with 12V Regulator of ( DC/Dc 12V)
|
|
Warning
|
- Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misusing (included but not limited to: mis-charging, mis-discharging, any changes of this battery pack, mis-assembling batterypacks...)
- Always pay attention when charging the battery pack. Battery shall put in a place or container with fire - proof to avoid any accident
- Please always check battery polarity before connection to device. Never make wrong polarity connection
- For safety warning please see the link here
|
| How to Charging & Discharging |
How to charge this battery pack: You must charge each module from each terminal by two chargers.
How to use this battery pack: Use 2 to 1 waterproof cable adaptor to connect two terminal in parallel and get 12.3Ah battery power,
- Please make sure water proof cable allignment before plug in.
- There are arrow mart on male and female connctor plug, and flat edge inside plug
- Please match aroow and flat before plug in. Wrong polarity may damage battery pack
|
