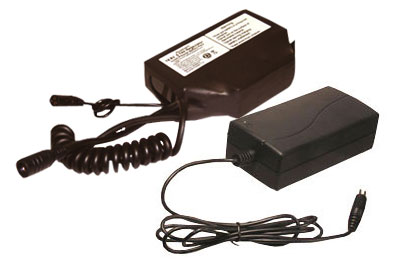

Polymer Li-Ion Battery Pack: 14.8V 5700mAh (84.36Wh, Trail-Tech Female plug with 12V Regulator) + 1.5A Smart Charger

Polymer Li-Ion Battery Pack: 14.8V 5700mAh (84.36Wh, Trail-Tech Female plug with 12V Regulator ) + 1.5A Smart Charger

Polymer Li-Ion Battery Pack: 14.8V 5700mAh (84.36Wh, Trail-Tech Female plug with 12V Regulator) + 1.5A Smart Charger

Packing

14.8V 5.7Ah polymer Li-Ion rechargeable battery made of 4 pcs Polymer Li-Ion Battery: 3.7V 5700 mAh (PL-H7051119). The battery pack is wrapped by heavy duty heat shrink tube

The battery pack is wrapped by heavy duty heat shrink tube with 12.0V DC regulator

Included one 1.5A charger for only 14.8V pack

The estimated charging time is 5.7 hours.

Optional for 1 pc A Fire Retardant Bag: 295mmx230mmx75mm --- Reduce the chance of damage if caught fire

This Fire Retardant Bag (Li-Ion Safer Bag) is intended to reduce the chance of damage in the event of catching fire.

Must locate & seal the battery pack in the bag while charging / leaving without any attention

Voltage

This battery is Regulated to 12V (working), 11.1V (cut-off). So it won't burn light bulb.

Capacity 5700 mAh ( 84.36 wh)

Protection

One PCM with balance function (10A max.) is installed with the battery pack to protect battery from

Over-charging beyond 4.25V/cell
Over-discharging below 2.75V/cell
Over-drain beyond 10A
Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.

One pcs of 7Amp polyswitch is installed to limit max. discharging current and to protect wrong polarity
One 12.0V DC regulator

Pre-wired

Discharge terminal

4' long Trail-Tech female co-axis connector

Charging terminal

2" long Universal two pin female plug

Excluded Trial-Tech Co-axis Male plug, please click here to buy separately. (It is used for connect to the light by yourself if the light connector won't match our Trail-Tech female co-axis plug.)
Must use 1.5A Universal Smart Li-Ion battery charger included to charge the pack via only charging terminal

The estimated charging time is 5.7 hours.

Max. Discharging Rate 4.0 Amp limited by 12.0V DC regulator

Battery's Dimensions (LxWxH) 5.0" (126mm) x 3.4"(86mm) x 1.5"(38mm)

Battery's Weight 1.4 lb (645 grams)

Smart Tips

Please keep your old bike lighting connector. You may need to link our wire to a special connector to make your lighting work properly , in case our universal connectors can not fit your light.
Need a portable bag? Please click here to order
Need additional battery? Please click here to order.

Applications You shall connect the battery pack to13.2V regulator with switch to achieve the best service life for running HID bike light ( click pic below to order )

12V HID light system (10-35W)
12V Halogen light system (10-15W)
12V bike light system with 4A Max current drawn
Burn-time = (84.36Wh / light's wattage) -0.8hrs

Warning

Li-Ion battery may be exploded if misusing. We are not responsible for any damages or losses caused by misuse (included but not limited to improperly charging / discharging, any changes of this battery pack, misassembling battery packs) .
Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident
Please check battery polarity before plug battery into light.
For safety warning please see the link here

Price: $119.95
